This HDCVI Indoor Camera is a 5MP full color indoor camera which displays coloured images during day and night time.
Model Number: DH-HAC-HDW1509TLP-LED
Other features include:
Full-color Starlight
The camera adopts F1.2 large aperture lens and 1/2.7″ high performance sensor. With higher amount of absorbed light and advanced image processing algorithm, the camera presents an impressive lowlight performance with an exceptional balance between noise reduction and the blur of moving object.
Warm Supplemental lights
With one warm supplemental LED lights, the camera is able to provide a coloful and vivid image even in total dark. By default, the camera is set to smart light mode, in which the camera can automatically adjust
the exposure time and light sensitivity simultaneously to avoid over exposure of the objects in the image center. Also, the sensitivity and intensity of the LED lights can be remotely controlled by OSD menu
Simplicity
HDCVI technology inherits the born feature of simplicity from traditional analog surveillance system, making itself a best choice for investment protection. HDCVI system can seamlessly upgrade the traditional analog system without replacing existing coaxial cabling. The plug and play approach enables full HD video surveillance without the hassle of configuring a network.
| Camera Specifications | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Image Sensor | 1/2.7″ CMOS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Effective Pixels | 1920(H)×1080(V), 2MP | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Scanning System | Progressive | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Electronic Shutter Speed | PAL: 1/25~1/100000s
NTSC: 1/30~1/100000s |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Minimum Illumination | 0.04Lux/F1.85, 30IRE, 0Lux IR on | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| S/N Ratio | More than 65dB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| IR Distance | Up to 20m (66feet) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| IR On/Off Control | Auto / Manual | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Lens | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Lens Type | Fixed lens / Fixed iris | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Mount Type | Board-in | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Focal Length | 3.6mm (2.8mm, 6mm Optional) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Max Aperture | F1.85 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Angle of View | H: 93° (103°, 54.7°) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Focus Control | N/A | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Close Focus Distance | 800mm (2000mm)
31.50” (78.74”) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Resolution | 1080P (1920×1080) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Frame Rate | 25/30fps@1080P, 25/30/50/60fps@720P | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video Output | 1-channel BNC high definition video output / CVBS video output (Can switch) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Day/Night | Auto (ICR) / Manual | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| OSD Menu | Multi-language | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| BLC Mode | BLC / HLC / DWDR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| WDR | DWDR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Gain Control | AGC | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Noise Reduction | 2D | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| White Balance | Auto / Manual | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Smart IR | Auto / Manual | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Casing: Plastic
Experience the Dahua DH-HAC-T1A21P 1080P full HD video and the simplicity of using existing cabling infrastructure with HDCVI. The Cooper series 1080P HDCVI camera features a compact design and offers a high quality image at a friendly price. It offers various vari-focal/fixed lens models with a multi-language OSD and HD/SD switchable output. Its structural flexibility and high costperformance makes the camera an ideal choice for SMB solutions. Other special features this camera has include:
Multi-language OSD
OSD menu provides multiple image adjustments and function settings to meet the requirements of different monitoring scenes. The OSD menu includes configurations such as backlight mode, day/night, white balance,
privacy mask and motion detect.
The camera supports 11 languages for OSD menu, namely, Chinese, English, French, German, Spanish, Portuguese,
Italian, Japanese, Korean, Russian and Polish.
| Camera | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Image Sensor | 1/2.7″ CMOS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Effective Pixels | 1920(H)×1080(V), 2MP | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Scanning System | Progressive | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Electronic Shutter Speed | PAL: 1/25~1/100000s
NTSC: 1/30~1/100000s |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Minimum Illumination | 0.04Lux/F1.85, 30IRE, 0Lux IR on | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| S/N Ratio | More than 65dB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| IR Distance | Up to 20m (66feet) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| IR On/Off Control | Auto / Manual | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Lens | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Lens Type | Fixed lens / Fixed iris | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Mount Type | Board-in | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Focal Length | 3.6mm (2.8mm, 6mm Optional) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Max Aperture | F1.85 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Angle of View | H: 93° (103°, 54.7°) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Focus Control | N/A | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Close Focus Distance | 800mm (500mm, 2000mm)
31.50” (19.69″, 78.74”) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Pan / Tilt / Rotation | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Pan/Tilt/Rotation | Pan: 0° ~ 360°
Tilt: 0° ~ 78° Rotation: 0° ~ 360° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Resolution | 1080P (1920×1080) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Frame Rate | 25/30fps@1080P, 25/30/50/60fps@720P | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video Output | 1-channel BNC high definition video output / CVBS video output (Can switch) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Day/Night | Auto (ICR) / Manual | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| OSD Menu | Multi-language | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| BLC Mode | BLC / HLC / DWDR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| WDR | DWDR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Gain Control | AGC | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Noise Reduction | 2D | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| White Balance | Auto / Manual | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Smart IR | Auto / Manual | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Experience 720P video and the simplicity of using existing cabling infrastructure with the Dahua DH-HAC-B1A11P HDCVI camera. The Cooper series 720P HDCVI camera features a compact design and offers a high quality image at a friendly price. It offers various fixed lens models with a multi-language OSD and HD/SD switchable output. Its structural flexibility and high cost-performance makes the camera an ideal choice for SMB solutions.
Technical Specification
Camera
Image Sensor :1/2.7″ CMOS
Effective Pixels 1280(H)×720(V), 1MP
Scanning System: Progressive
Electronic Shutter Speed PAL: 1/25~1/100000s
NTSC: 1/30~1/100000s
Minimum Illumination: 0.04Lux/F2.4, 30IRE, 0Lux IR on
S/N Ratio: More than 65dB
IR Distance :Up to 20m (66feet)
IR On/Off Control: Auto / Manual
Lens
Lens Type: Fixed lens / Fixed iris
Mount Type :Board-in
Focal Length: 2.8mm
Max Aperture :F2.4
Angle of View H: 93°
V: 48°
Close Focus Distance 800mm
31.50”
Video
Resolution: 720P (1280×720)
Frame Rate: 25/30fps@720P
Video Output: 1-channel BNC high definition video output / CVBS
Video output :(Can switch)
Day/Night Auto (ICR)
High Definition Composite Video Interface (HDCVI) is Dahua’s patented in-house technology. HDCVI is an over-coaxial cable video standard that enables long-distance HD video transmission over a wide range of application scenarios at a friendly cost.
Smart IR
The camera is designed with microcrystalline LED IR illumination for best lowlight performance. Smart IR is a technology to ensure brightness uniformity in B/W image under low illumination. Dahua’s unique Smart IR adjusts to the intensity of camera’s infrared LEDs to compensate for the distance of an object, and prevents IR LEDs from overexposing images as the object come closer to the camera.
Multi-formats
The camera supports multiple video formats including HDCVI, CVBS and other two common HD analog formats in the market. The four formats can be switched over through OSD menu or by PFM820 (UTC controller). This
feature makes the camera to be compatible with not only HCVRs but also most end users’ existing HD/SD DVRs.
| Device Type | Surveillance camera |
| Connection type | wired |
| Matrix resolution | 1 Mpx (1280х720) |
| Video standard | HDCVI, HDTVI, AHD, CVBS (Analogue) |
| Installation location | Inside |
| Type of instalation | Wall, Ceiling and Overhead |
| Form factor | Dome |
| Intended for use | Home, house, office, store, warehouse, production, garage |
| Wi-Fi support | No |
| Matrix type | 1/2.7″ CMOS |
| Recording speed | 720p – 25/30 fps |
| Camera motion sensor | No |
| Lens type | Fixed |
| Focal length | 2.8 mm |
| Viewing angle | 93° |
| Optical zoom | 1x |
| Digital zoom | 1x |
| Light sensitivity | 0.04 Lx / F2.4, 30IRE, 0 Lx with IR |
| Light distance | 20 m |
| Day-night mode | yes, ICR filter |
| Streaming | 1 stream |
| Video output | 1x BNC |
| Modes | ICR / AGC / AWB / BLC / DWDR |
| Additional functions of camera | Smart IR |
| Browsers | Chrome, Firefox, Safari, Edge, Opera |
| OS support | Windows, MAC OS, IOS, Android |
| Special features | Smart IR-illumination |
| Compatibility | with Dahua DVRs |
| Consumption | 2.3 W |
| Operating voltage | 12V DC |
| Dimensions (WхHхD) | 85х85х69 mm |
| Body color | White |
| Body material | Plastic |
| Weight | 90g |
| Temperature Range | -40…+60° |
System Overview
With upgraded H.265 encoding technology, Dahua Lite series camera has efficient video encoding capacity, which saves bandwidth and storage space. This camera adopts the latest starlight technology and displays better colorful image in the environment of low illumination. It supports SD card storage, waterproof function, dust-proof function, complying to the standards of IP67.
Functions
Smart ( H.265+ & H.264+ )
Adopting advanced algorithm of auto stream control according to the environment, Dahua smart encoding technology realizes the higher efficiency than (H.265 & H.264 ), providing high-quality video, and reducing
the cost of storage and transmission.
Intelligent Video Analysis (IVS)
With advanced video algorithm, Dahua camera supports intelligent detection, such as tripwire and intrusion and so on.
Protection (IP67, wide voltage)
IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can works normal after soaking in 1m deep water for 30 minutes.
Wide voltage: The camera allows ±30% input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with unstable voltage.
With updraded H.265 encoding technology, Dahua Lite series camera has efficient video encoding capacity, which saves bandwidth and storage space. This camera adopts the latest starlight technology and displays better colorful image in the environment of low illumination. It supports SD card storage, waterproof function, dust-proof function and tamper-proof function, complying to the standards of IP67 and IK10. With advanced video algorithm, Dahua camera supports intelligent detection, such as tripwire and intrusion and so on.
Functions
Smart (H.265+ & H.264+)
Adopting advanced algorithm of auto stream control according to the environment, Dahua smart encoding technology realizes the higher efficiency than (H.265 & H.264 ), providing high-quality video, and reducing the cost of storage and transmission.
Specification
Camera
Image Sensor : 1/2.8” 2Megapixel progressive CMOS
Effective Pixels :1920 (H) ×1080 (V)
ROM:128 MB
RAM: 128 MB
Scanning System: Progressive
Electronic Shutter Speed: Auto/Manual 1/3 s–1/100000 s
Min. Illumination: 0.002 Lux @F1.6
IR: Distance: 30 m (98.4 ft)
IR On/Off Control Auto/Manual
IR LEDs Number 3
Lens Features
Lens Type :Fixed-focal
Mount Type: M12
Focal Length: 2.8 mm, 3.6 mm
Max. Aperture: F1.6
EZ-IP is perfect for small to medium size applications like home/residential security, small retail shops, and other typical SMB applications. It offers a perfect alternative to migrate from analog to an IP system with its easy to use nature and cost effectiveness.
EZ-IP is fully in line with Dahua’s quality. Stable and reliable components are utilized and Various tests such as anti-vibration, water resistance, and aging tests are performed to ensure Dahua quality standards.
Functions
Smart Codec (H.265+ & H.264+)
Smart Codec is the optimized implementation of standard video compression (H.265 & H.264) that uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart Codec technology reduces bit rate and storage requirements by up to 70% when compared to the standard video compression.
True Day/Night
A day/night mechanical IR cut filter makes this camera ideal for applications with fluctuating lighting conditions, delivering color images during the day and automatically switching to monochrome as the scene darkens
Smart IR
With IR illumination, detailed images can be captured in low light or total darkness. The camera’s Smart IR technology adjusts to the intensity of camera’s infrared LEDs to compensate for the distance of an object. Smart IR technology prevents IR LEDS from whiting out images as they come closer to the camera. The camera’s integrated infrared illumination
EZ-IP is perfect for small to medium size applications like home/residential security, small retail shops, and other typical SMB applications. It offers a perfect alternative to migrate from analog to an IP system with its easy to use nature and cost effectiveness.
EZ-IP is fully in line with Dahua’s quality. Stable and reliable components are utilized and Various tests such as anti-vibration, water resistance, and aging tests are performed to ensure Dahua quality standards.
Functions
Environmental
Dahua cameras operate in extreme temperature environments, rated for use in temperatures from -20° C to +50° C (-4° F to +122° F) with 95% humidity.
Protection (IP67, wide voltage)
The camera allows for ±25% input voltage tolerance, suitable for the most unstable conditions for outdoor applications. Its 2KV lightning rating provides effective protection for both the camera and its structure
against lightning. Subjected and certified to rigorous dust and immersion tests (IP67) .
Interoperability
The camera conforms to the ONVIF (Open Network Video Interface Forum) specifications, ensuring interoperability between network video products regardless of manufacturer.
Regions of interest
Regions of Interest (ROI) is a user defined feature that allows the operator to monitor specific areas of a scene while still maintaining overall situational awareness of less important areas.
System Overview
With upgraded H.265 encoding technology, this Dahua Lite series camera has efficient video encoding capacity, which saves bandwidth and storage space. This camera adopts the latest starlight technology and displays better colorful image in the environment of low illumination. It supports SD card storage, waterproof function, dust-proof function and tamper-proof function, complying to the standards of IP67 and IK10.
Model Number:DH-IPC-HDBW2431EP-S-S2
| Technical specifications for this Camera | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Image Sensor | 1/3” 4Megapixel progressive CMOS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Effective Pixels | 2688 (H) × 1520 (V) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| RAM/ROM | 128MB/128MB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Scanning System | Progressive | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Electronic Shutter Speed | Auto/Manual, 1/3~1/100000s | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Minimum Illumination | 0.008 Lux @ F1.6
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Pan/Tilt/Rotation Range | Pan: 0°–355° Tilt: 0°–65° Rotation: 0°–355° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| IR Distance | 30m(98ft) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| IR On/Off Control | Auto/Manual | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| IR LEDs | 3 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Lens | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Lens Type | Fixed-focal | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Mount Type | M12 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Focal Length | 2.8 mm 3.6 mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Field of View | 2.8 mm: Pan: 102.0° Tilt: 55.0° Diagonal: 121.0° 3.6 mm: Pan: 84.0° Tilt: 45.0° Diagonal: 100.0° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Max. Aperture | F1.6 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Iris Type | Fixed aperture | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Close Focus Distance | 2.8 mm: 0.9 m (2.95 ft) 3.6 mm: 1.6 m (5.25 ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| DORI Distance |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Smart Event | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| General IVS Analytics | Tripwire; intrusion | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Intelligence | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Event Trigger | Motion detection, Video tampering, Scene changing, Network disconnection, IP address conflict, Illegal access, Storage anomaly | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| IVS | Tripwire, Intrusion | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Compression | H.265; H.264; H.264B; MJPEG | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Smart Codec | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Streaming Capability | 2 Streams | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Resolution | 2688 × 1520 (2688 × 1520); 2560 × 1440 (2560 × 1440); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 ×480); CIF (352 × 288/352 × 240) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Frame Rate |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Bit Rate Control | CBR/VBR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Bit Rate | H.264: 32 kbps–6144 kbps H.265: 12 kbps–6144 kbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| WDR | 120dB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| BLC Mode | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| White Balance | Auto/natural/street lamp/outdoor/manual/regional custom |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Gain Control | Auto/Manual | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Noise Reduction | 3D DNR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Motion Detection | Off / On (4 areas,Rectangle) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Region of Interest | Yes (4 areas) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Electronic Image Stabilization(EIS) | N/A | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Smart IR | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Digital Zoom | 16X | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Image Rotation | 0°/90°/180°/270° (Supports 90°/270° with 2688 ×1520 resolution and lower.) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Mirror | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Privacy Masking | 4 Areas | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Model Number: DHI-KTA01
Button Type: Mechanical keyboard keys
Camera: 1/2.7” 2MP CMOS
Field of View : H:70°, V:38°, D:82°
Focal Length 3.3 mm
IR Support
Audio In: 1 channel to the microphone, pickup distance 0.5m
Audio Out :1 channel to the speaker
Indicator Light: 1 indicator light; Green: Power on
Communication Method: Analog
Unlock Mode: Local unlock
Exit Button: 1
Appearance Color :Black
Installation Mode: Surface
Certification: CE FCC
Dimensions :134.9 mm × 47.2 mm × 33.8 mm
Designed as a full compatibility product, this XVR is able to provide end user the simplicity of analog system, namely lower system cost, simple installation and use of existing cable. And with the adoption
of Smart H.265+/H.265, the series improves encoding efficiency, saving on bandwidth/storage costs. It is ideal for a wide range of civil applications such as retail store, home protection and so on
Functions
Smart H.265+: Smart Codec, H.265+ can reduce up to 90% bit rate and storage
requirements compared with H.264 without having to invest in new
cameras.
HDCVI/AHD/TVI/CVBS/IP Auto-detect: The XVR can auto recognize the signal of front-camera without any setting. It makes operation more friendly and convenient.
High Definition Camera Input: The XVR supports up to 5MP HDCVI camera and 6MP IP camera input.
Coaxial Audio/Upgrade/Alarm :The integrated design can reduce wiring troubles which makes it much more
cost-effective and convenient for installation.
Video and Audio functions:
Analog Camera Input : 4/8 Channel, BNC
HDCVI Camera :5MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps
AHD Camera: 5MP, 4MP, 1080P@25/30, 720P@25/30fps
TVI Camera: 5MP, 4MP, 1080P@25/30, 720P@25/30fps
CVBS Camera :PAL/NTSC
IP Camera Input: 4+2/8+4CH, each channel up to 6MP
Audio In/Out 1/1, RCA
Two-way Talk Reuse audio in/out, RCA
As a leading manufacturer of HDCVI (High Definition Composite Video Interface) technology, Dahua continuously invests in the technology to rejuvenate existing coaxial-based systems. This camera, alongside its high performance features, has an in-built audio system.

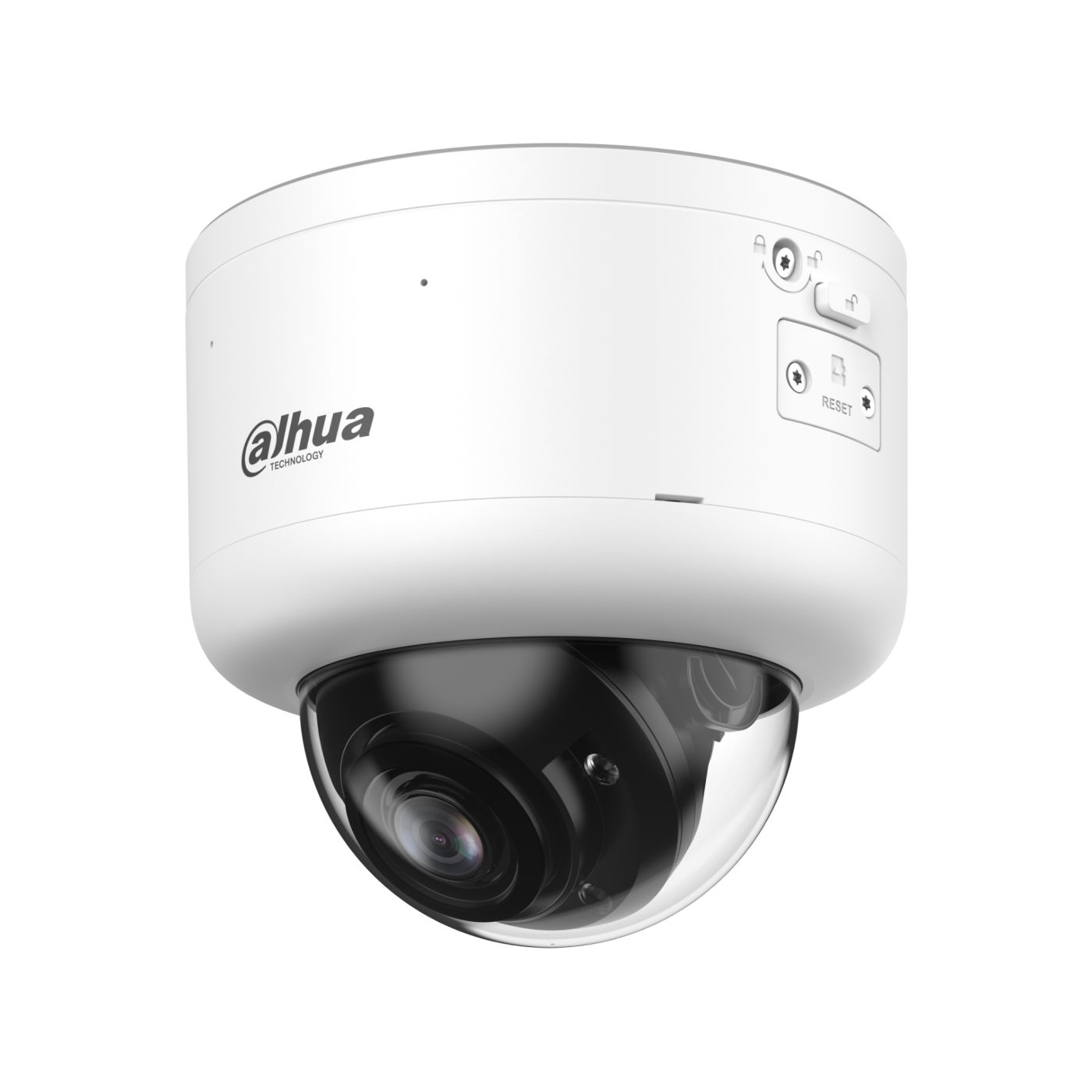

Camera Specifications:
| Resolution TVL | 1080P TVL resolution |
|---|---|
| HD | Yes |
| Dome Type | Static |
| Sensitivity lux | 0.02 lux |
| Digital (DSP) | Yes |
| Electrical Specifications | Voltage: 12 V DC Power Consumption: 4.5 W |
| Focal length | 3.6 mm fixed lens |
| Back Light Compensation | Yes |
| Auto Gain Control | Yes |
| White Balance | Yes |
| Electronic Shutter range | 1/50s ~ 1/100,000s |
| Synchronisation | Internal |
| Built-in IR LED | Yes |
| Video Output | 1-channel BNC HDCVI |
| Physical Specifications | Dimensions mm: 106 × 94 Weight g: 450 |
| Environmental Specifications | Operating Temp oC: -30 ~ +60 C (-22 ~ +140 F) Operating Humidity %: < 95 Protection: IP67 |
| System features | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Main Processor | Embedded Processor | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operating System | Embedded LINUX | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video and Audio | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Analog Camera Input | 16 Channel, BNC | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| HDCVI Camera | 1080P@25/30fps, 720P@25/30fps | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| AHD Camera | 1080P@25/30, 720P@25/30fps | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TVI Camera | 1080P@25/30, 720P@25/30fps | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| CVBS Camera | PAL/NTSC | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| IP Camera Input | 16+2, each channel up to 6MP | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio In/Out | 1/1, RCA | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Two-way Talk | Reuse audio in/out, RCA | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Recording | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video Compression | H.265+/H.265/H.264+/H.264 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Resolution | 1080N, 720P, 960H, D1, HD1, BCIF, CIF, QCIF | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Record Rate | Main Stream:
the 1st channel 1080N/720P(1~25/30fps), others 1080N/720P(1~15fps); 960H/D1/HD1/BCIF/CIF/QCIF(1~25/30fps) Sub stream: CIF/QCIF (1~7fps) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video Bit Rate | 32Kbps ~ 4096Kbps Per Channel | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Record Mode | Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Record Interval | 1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio Compression | AAC(only for the 1st channel), G.711A, G.711U, PCM | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio Sample Rate | 8KHz, 16 bit Per Channel | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio Bit Rate | 64Kbps Per Channel | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Display features | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Interface | 1 HDMI ,1 VGA | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Resolution | 1920×1080, 1280×1024, 1280×720 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Multi-screen Display | When IP extension mode not enabled: 1/4/8/9/16
When IP extension mode enabled: 1/4/8/9/16/25 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Network | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Interface | 1 RJ-45 Port (100M) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Network Function | HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter ,DDNS, FTP, Alarm Server, P2P,IP Search (Supports IP camera, DVR, NVS, etc.) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Max. User Access | 128 users | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Smart Phone | iPhone, iPad, Android | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Interoperability | ONVIF 16.12, CGI Conformant | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video Detection and Alarm | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Trigger Events | Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video Detection | Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Alarm input | N/A | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Relay Output | N/A | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Playback and Backup | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Playback | 1/4/9/16 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Search Mode | Time /Date, Alarm, MD and Exact Search (accurate to second) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Playback Function | Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Backup Mode | USB Device/Network | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Storage | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Internal HDD | 1 SATA Port, up to 6TB capacity | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| eSATA | N/A | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Auxiliary Interface | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| USB | 2 USB 2.0 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| RS232 | N/A | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| RS485 | N/A | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Electrical | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Supply | DC12V/2A | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Consumption
(Without HDD) |
<10W | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Construction | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Dimensions | Compact 1U, 260×236×48mm(10.2″×9.3″×1.9″) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Net Weight
(without HDD) |
0.80kg ( 1.76lb) (without HDD) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Gross Weight | 1.5kg (3.3lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Installation | Desktop installation | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Environmental | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operating Conditions | -10°C ~ +45°C (+14°F ~ +113°F), 10~ 90% RH | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Storage Conditions | -20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RH | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Third-party Support | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Third-party Support | Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Certifications | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Certifications | FCC: Part 15 Subpart B | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| CE: CE-LVD: EN 60950-1/IEC 60950-1
CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| UL: UL 60950-1 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Camera |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Image Sensor |
1/2.7″ CMOS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Effective Pixels |
1920(H)×1080(V), 2MP |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Scanning System |
Progressive |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Electronic Shutter Speed |
PAL: 1/25~1/100000s NTSC: 1/30~1/100000s |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Minimum Illumination |
0.04Lux/F1.85, 30IRE, 0Lux IR on |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
S/N Ratio |
More than 65dB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
IR Distance |
Up to 20m (66feet) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
IR On/Off Control |
Auto / Manual |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Lens |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Lens Type |
Fixed lens / Fixed iris |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Mount Type |
Board-in |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Focal Length |
3.6mm (2.8mm, 6mm Optional) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Max Aperture |
F1.85 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Angle of View |
H: 93° (103°, 54.7°) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Focus Control |
N/A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Close Focus Distance |
800mm (2000mm) 31.5” (78.74”) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| System | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Main Processor | Quad-core embedded processor | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operating System | Embedded LINUX | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Aduio and Video | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| IP Camera Input | 16/32 Channel | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Two-way Talk | 1 Channel Input, 1 Channel Output, RCA | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Display | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Interface | 1 HDMI, 1 VGA | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Resolution | HDMI: 3840×2160, 1920×1080, 1280×1024, 1280×720 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| VGA: 1920×1080, 1280×1024, 1280×720 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Decoding Capacity | 2ch@4K 30fps, 8ch@1080P 30fps | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Multi-screen Display | 16ch: 1/4/8/9/16 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 32ch: 1/4/8/9/16/25/36 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| OSD | Camera title, Time, Camera lock, Motion detection, Recording | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Recording | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Compression | Smart H.265+/H.265/Smart H.264+/H.264 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Resolution | 8Mp/ 6Mp/ 5MP/ 4MP/ 3MP/ 1080P/ 1.3MP/ 720P etc. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Record Rate | 200Mbps | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Bit Rate | 16Kbps ~ 20Mbps Per Channel | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Record Mode | Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Tampering, Video Loss), Stop | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Record Interval | 1 ~ 120 min (default: 60 min), Pre-record:
1 ~ 30 sec, Post-record: 10 ~ 300 sec |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video Detection and Alarm | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Trigger Events | Recording, PTZ, Tour, Video Push, Email, Snapshot, Buzzer and Screen Tips | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video Detection | Motion Detection, MD Zones: 396 (22 × 18),
Video Loss and Tampering |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Alarm input | 4 Channel | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Alarm output | 2 Channel | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Playback and Backup | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Playback | 1/4/9/16 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Search Mode | Time /Date, MD and Exact Search
(accurate to second), Smart search |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Playback Function | Play, Pause, Stop, Rewind, Fast play, Slow Play,
Next File, Previous File, Next Camera, Previous Camera, Full Screen, Backup Selection, Digital Zoom |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Backup Mode | USB Device/Network | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Third-party Support | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Third-party Support | Arecont Vision, Airlive, AXIS, Canon, Dynacolor, JVC, LG, Panasonic, Pelco, PSIA, Samsung, Sanyo, Sony, Watchnet and more | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Network | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Interface | 1 RJ-45 Port (10/100/1000Mbps) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Ethernet Port | 1 Independent 1000Mbps Ethernet Port | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| PoE | 16 ports (IEEE802.3at/af) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Network Function | HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, DDNS, FTP, SNMP, IP Search (Support IP camera, DVR, NVS, etc.) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Max. User Access | 128 users | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Smart Phone | iPhone, iPad, Android | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Interoperability | ONVIF 2.4, SDK, CGI | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Storage | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Internal HDD | 2 SATA III Ports, Up to 6 TB capacity for each HDD | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| HDD Mode | Single | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Auxiliary Interface | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| USB | 2 ports(1 USB2.0, 1 USB3.0) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| RS232 | 1 Channel | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| RS485 | N/A | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Electrical | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Supply | AC100V ~ 240V, 50 ~ 60 Hz | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Consumption | NVR: < 13.2W(without HDD) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| PoE: Max 25.5w for single port, 130w in total | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Environmental | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operating Conditions | -10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Storage Conditions | -20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Construction | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Dimensions | 1U, 375mm×327.5mm×53mm
(14.8″ x 12.9″ x2.1″) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Net Weight | 2.6kg (5.7 lb) (without HDD) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Gross Weight | 4kg(8.8 lb)(without HDD) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Certifications | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| CE | EN55032, EN55024, EN50130-4, EN60950-1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| FCC | Part 15 Subpart B, ANSI C63.4-2014 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| UL | UL60950-1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
The Hikvision DS-7732NI-K4-16P is a 32 channel network video recorder with a wide array of features, including 16 PoE network interfaces, support for up to 4k (8MP) resolution recording and playback, H.264/H.264+/H.265/H.265+ codecs, and a dual OS design for reliability and failover redundancy.
This brand new NVR is designed to be cost-efficient, whilst still containing all of the benefits and features that are expected from Hikvision’s latest generation of fantastic IP camera systems. It’s perfect for those small security systems found in homes and shops.
The K Series NVRs also support Hikvision’s Automatic Number Plate Recognition solutions and two way audio.
This NVR will accept any capacity hard drive (HDD) currently available. Any maximum capacity stated on the manufacturer’s documents is simply based upon the maximum HDD size that was available at the time of release/publication.
Professional features:
HD Input
HD Output
HD Storage
HD Transmission
Various Applications
Find recommended surveillance hard disk drive for this NVR here.
Hikvision DS-7204HQHI-F2 is 4-channel, 1080P digital video recorder with 1 SATA interface. It supports 4 cameras with space for 1 hard diskdrive.
| DS-7204HQHI-K2 Video/Audio Input | ||
|---|---|---|
| Audio Input: | 1-ch | |
| Video Compression: | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 | |
| Analog and HD-TVI video input: | 4-ch,BNC interface (1.0Vp-p, 75 Ω)connection | |
| Supported camera types: | 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25 Note: The 3 MP signal input is only available for channel 1 of DS-7204HQHI-K1, for channel 1/2of DS-7208HQHI-K1, and for channel 1/2/3/4 of DS-7216HQHI-K1. Support AHD input: 4 MP, 1080p25, 1080p30, 720p25, 720p30 Support CVI input:4 MP, 1080p25, 1080p30, 720p25, 720p30 Support CVBS input |
|
| Video Input Interface: | Hikvision BNC (1.0 Vp-p, 75Ω) | |
| Audio Compression: | G.711u | |
| Audio Input Interface: | RCA (2.0 Vp-p, 1 kΩ) | |
| Two-way Audio: | 1-ch, RCA (2.0 Vp-p, 1 KΩ), (using the 1st channel of audio input) | |
| Video/Audio Output | ||
|---|---|---|
| HDMI/VGA Output: | 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz | |
| Recording resolution: | When 1080p Lite mode not enabled: 4 MP lite/3 MP/1080p/1080p lite/720p/WD1/4CIF/VGA/CIF When 1080p Lite mode enabled: 4 MP lite/3 MP/1080p lite/720p/720p lite/WD1/4CIF/VGA/CIF |
|
| Frame Rate: | Main stream: When 1080p Lite mode not enabled: For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps For 1080p stream access: 1080p@15fps; 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) When 1080p Lite mode enabled: 4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) |
|
| Video Bit Rate: | 32 Kbps-6 Mbps | |
| Stream Type: | Video/Video&Audio | |
| Two-way Audio: | 1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input) | |
| Audio Output: | 1-ch RCA(Linear, 1kΩ) | |
| Audio Bit Rate: | 64kbps | |
| Dual Stream: | Support | |
| Synchronous Playback: | 4-ch Hikvision DVR | |
| Network management | ||
|---|---|---|
| Remote connections: | 32 | |
| Network protocols: | TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P,DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?, HTTPS,ONVIF | |
| Hard Disk Driver | ||
|---|---|---|
| Interface Type: | 1 SATA Interface | |
| Capacity: | Up to 10 TB capacity for each disk | |
| External Interface | ||
|---|---|---|
| Network Interface: | 1; 10M / 100M self-adaptive Ethernet interface | |
| USB Interface: | 2 USB 2.0 Interfaces | |
| Serial Interface: | 1; standard RS-485 serial interface, half-duplex | |
| General | ||
|---|---|---|
| Power Supply: | 12V DC | |
| Consumption: | ≤ 6W(without hard disks) | |
| Working Temperature: | -10 oC to +55 oC (14 oF to 131 oF) | |
| Working Humidity: | 10% to 90% | |
| Dimensions: | 315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch) | |
| Weight: | ≤ 1.16 kg (2.6 lb) | |
DS-2CE16C0T-IT3 Hikvision HD720P EXIR Bullet Camera. This Hikvision camera is true day and night with extended IR distance of 40M. It is designed to cover more distance than the conventional entry level Hikvision cameras.
Product/Brand:DS-2CE16C0T-IT3 Hikvision
| DS-2CE16C0T-IT3 Hikvision Camera | ||
|---|---|---|
| Image Sensor: | 1MP CMOS Image Sensor | |
| Signal System: | PAL/NTSC | |
| Effective Pixels: | 1296(H)x732(V) | |
| Min. Illumination: | 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR | |
| Shutter Time: | 1/25(1/30) s to 1/50,000 s | |
| Lens Mount: | M12 | |
| Adjustment Range: | Pan: 0 – 360°, Tilt: 0 – 180°, Rotation: 0 – 360° | |
| Day& Night: | IR cut filter with auto switch | |
| Video Frame Rate: | 720p@25fps/720p@30fps | |
| HD Video Output: | 1 Analog HD output | |
| Synchronization: | Internal Synchronization | |
| S/N Ratio: | More than 62 dB | |
| Hikvision General | ||
|---|---|---|
| Operating Conditions: | -40 °C – 60 °C (-40 °F – 140 °F) Humidity 90% or less (non-condensing) |
|
| Power Supply: | 12 VDC±15% | |
| Weather Proof: | IP66 | |
| IR Range: | Up to 40m | |
| Dimension: | 86.22×82.05×220.13mm(3.39”×3.23”×8.67”) | |
| Weight: | 700 g | |
The Hikvision’s handheld Temperature Screening Thermographic Camera is designed to detect elevated skin-surface temperatures, and can thus be used for rapid and preliminary temperature screening in office buildings, factories, stations, airports and other public places, with accuracy up to ±0.3°C.
It’s equipped with a 160×120 resolution thermal detector. It is capable of discovering and tracking people with elevated body temperatures in crowded public areas and can be widely used in places such as customs, airport, schools, and hospitals for inspection and quarantine. With a Wi-Fi module, the handheld camera can connect to a PC or a smartphone. It also features a built-in speaker for audio alarm.
Model Number: DS-2TP21B-6AVF/W
Special features of this camera include:
THERMAL FEATURES
Image Sensor : VOx Uncooled Focal Plane Arrays
Resolution: 160×120
Pixel Interval: 17μm
Focal Length: 6.2mm
Focus Mode : Manual
Field Of View: 25° × 18.7°
SYSTEM FUNCTION
Laser Light: Support (Point to the thermography target)
Capture: Thermal/Optical/Fusion image
Video : Thermal/Optical/Fusion image
Text Comment: Yes
Voice Comment:Yes
Wi-Fi: Yes
Storage: Built-in memory module (16 G)
Client: iVMS-4800 (PC);Hik-Thermal (Mobile APP)
Battery Type: Dismountable and rechargeable Li-ion Battery
Battery Operating Time: 5 hours in normal temperature, with Wi-Fi, Bluetooth, and supplement light off. 4 hours in normal temperature, with Wi-Fi, Bluetooth, and supplement light on.
OPTICAL
Picture Resolution:Configurable: 2 MP, 5 MP, 8 MP
Video Resolution :640 × 480
Click here to download the data sheet.
Hikvision DS-7208hQHI-K1 is an 8-channel, 1020P, digital video recorder with 1 SATA interface. It supports one hard disk drive up to 10TB.
| Video/Audio Input | ||
|---|---|---|
| Audio Input: | 1-ch | |
| Video Compression: | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 | |
| Analog and HD-TVI video input: | 8-ch,BNC interface (1.0Vp-p, 75 Ω)connection | |
| Supported camera types: | Support HDTVI input: 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25 Note: The 3 MP signal input is only available for channel 1 of DS-7204HQHI-K1, for channel 1/2of DS-7208HQHI-K1, and for channel 1/2/3/4 of DS-7216HQHI-K1. Support AHD input: 4 MP, 1080p25, 1080p30, 720p25, 720p30 Support CVI input: 4 MP, 1080p25, 1080p30, 720p25, 720p30 Support CVBS input |
|
| Video Input Interface: | BNC (1.0 Vp-p, 75Ω) | |
| Audio Compression: | G.711u | |
| Audio Input Interface: | RCA (2.0 Vp-p, 1 kΩ) | |
| Two-way Audio: | 1-ch, RCA (2.0 Vp-p, 1 KΩ), (using the 1st channel of audio input) | |
| Video/Audio Output | ||
|---|---|---|
| HDMI/VGA Output: | 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz | |
| Recording resolution: | When 1080p Lite mode not enabled: 4 MP lite/3 MP/1080p/1080p lite/720p/WD1/4CIF/VGA/CIF When 1080p Lite mode enabled: 4 MP lite/3 MP/1080p lite/720p/720p lite/WD1/4CIF/VGA/CIF |
|
| Frame Rate: | Main stream: When 1080p Lite mode not enabled: For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps For 1080p stream access: 1080p@15fps; 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) When 1080p Lite mode enabled: 4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) |
|
| Video Bit Rate: | 32 Kbps-6 Mbps | |
| Stream Type: | Video/Video&Audio | |
| Two-way Audio: | 1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input) | |
| Audio Output: | 1-ch RCA(Linear, 1kΩ) | |
| Audio Bit Rate: | 64kbps | |
| Dual Stream: | Support | |
| Synchronous Playback: | 8-ch | |
| Network management | ||
|---|---|---|
| Remote connections: | 64 | |
| Network protocols: | TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P,DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?, HTTPS,ONVIF | |
| Hard Disk Driver | ||
|---|---|---|
| Interface Type: | 1 SATA Interface | |
| Capacity: | Up to 10 TB capacity for each disk | |
| External Interface | ||
|---|---|---|
| Network Interface: | 1; 10M / 100M self-adaptive Ethernet interface | |
| USB Interface: | 2 USB 2.0 Interfaces | |
| Serial Interface: | 1; standard RS-485 serial interface, half-duplex | |
| General | ||
|---|---|---|
| Power Supply: | 12 VDC | |
| Consumption: | ≤ 7.5W(without hard disks) | |
| Working Temperature: | -10 oC to +55 oC (14 oF to 131 oF) | |
| Working Humidity: | 10% to 90% | |
| Dimensions: | 315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch) | |
| Weight: | ≤ 1.78 kg (3.9 lb) | |
| Weight | 2000.0000 |
|---|---|
| Image chip size | 1/2.8″ |
| Image chip type | Progressive Scan CMOS |
| Image Compression | H.265,H.264,MJPEG |
| Audio | N/A |
| Auto-Focus | Yes |
| Indoor / Outdoor | Indoors or Outdoors |
| Ingress Protection | IP66 |
| Colour / monochrome | True Day/Night |
| Max. Resolution | 1920 X 1080 |
| Min. low-light lux | 0.01 |
| Supply Volts | 12V DC |
| Lens Mount | remote focus & zoom |
| Lens Focal Length | 4.7~94mm |
| Viewing Angle | Horizontal Field of View |
| Aspect ratio | 16:9 |
| Megapixels | 2 MP |
| Supplied with lens | Yes |
| Accepts auto-iris lens | Yes |
| IR Range | Up to 100m |
| Max. Images per second | 25 |
| ONVIF Compatible | Yes |
| Power Consumption | max. 20W |
The Hikvision DS-2CE72DOT-PIRXF Turbo HD Dome PIR Siren camera integrates three essentials components i.e:
The Camera also has some multi-device notification system in both the front and back end. The front-end alarm warns and deters intruders, while the back-end will push notifications to security personnel. Alarm information will also be shown on mobile devices.
Camera Specifications
Image Sensor :2MP CMOS
Signal System :PAL/NTSC
Frame Rate : TVI: 1080p@30fps, 1080p@25fps AHD: 1080p@30fps, 1080p@25fps CVI: 1080p@30fps, 1080p@25fps CVBS: PAL/NTSC
Resolution1920 (H) × 1080 (V)
Min. Illumination0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter TimePAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s
Lens2.8 mm, 3.6 mm, 6 mm fixed lens
Horizontal Field Of View2.8 mm, horizontal FOV: 106°, vertical FOV: 57°, diagonal FOV: 124° 3.6 mm, horizontal FOV: 81°, vertical FOV: 43°, diagonal FOV: 96° 6 mm, horizontal FOV: 51°, vertical FOV: 29°, diagonal FOV: 58°
Lens MountM12
Strobe Light AlarmYes
Day & NightICR
WDR (Wide Dynamic Range)Digital WDR
Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 75°, Rotate 0 to 360°
Menu
Image Mode :STD/HIGH-SAT
AGC: Support
Day/Night Mode :Auto/Color/BW (Black and White)
White Balance :ATW/MANUAL
HLC :Yes
BLC (Backlight Compensation):Yes
Language :English
Functions:Brightness, Sharpness, Mirror, Smart IR
Interface
Video Output :Switchable TVI/AHD/CVI/CVBS
General Camera Information:
Operating Condition :-40° C to 60° C (-40° F to 140° F), Humidity 90% or less (no condensation)
Power Supply :12 VDC ± 25% (You are recommended to use one power adapter to supply the power for one camera).
Power Consumption Max.: 5.3 W
Protection: Level IP67
Material Enclosure: Plastic Main Body: Metal
IR Range :Up to 20 m
Communication :HIKVISION-C
Dimensions :109.82 mm × 93.66 mm (Φ 4.32″ × 3.7″)
WeightApprox. : 388 g (0.86 lb.)
This Hikvision Thermographic turret camera is able to measure object’s temperature very accurately and gives results/readings in real time. It raises an audible alarm with its audio alarm feature. It has a built-in MicroSD card slot, supporting MicroSD/SDHC/SDXC card (up to 256 G), supports manual/alarm recording.
Powered by a 4MP optical resolution, the camera stands as a very good choice for temperature screening in public areas like airports, schools etc.
Model Number: DS-2TD1217B-6/PA
Other features are:
OPTICAL
Image Sensor : 1/2.7″ Progressive Scan CMOS
Resolution: 2688×1520, 4MP
Min. Illumination : Color: 0.0089 Lux @ (F1.6, AGC ON), B/W: 0.0018 Lux @ (F1.6, AGC ON)
Field Of View: 39.42° × 22.14°(H × V)
Focal Length : 8mm
Shutter Speed: 1s to 1/100,000s
White Balance: Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Daylight Lamp/Sodium Lamp
Day & Night Mode: IR cut filter with auto switch
WDR: 120 dB
SMART FUNCTION
Temperature Range : From 30°C to 45°C (86°F ~ 113°F)
Temperature Accuracy :± 0.5 °C
SPECIAL FEATURES:
Bi-Spectrum Image Fusion :Display the details of optical channel on thermal channel
Picture In Picture : Display partial image of thermal channel on the full screen of optical channel
Click here to download the data sheet
| Camera | ||
|---|---|---|
| Image Sensor: | 1MP CMOS Image Sensor | |
| Signal System: | PAL/NTSC | |
| Effective Pixels: | 1296(H)x732(V) | |
| Min. Illumination: | 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR | |
| Shutter Time: | 1/25(1/30) s to 1/50,000 s | |
| Lens Mount: | M12 | |
| Adjustment Range: | Pan: 0 – 360°, Tilt: 0 – 180°, Rotation: 0 – 360° | |
| Day& Night: | IR cut filter with auto switch | |
| Video Frame Rate: | 720p@25fps/720p@30fps | |
| HD Video Output: | 1 Analog HD output | |
| Synchronization: | Internal Synchronization | |
| S/N Ratio: | More than 62 dB | |
| General | ||
|---|---|---|
| Operating Conditions: | -40 °C – 60 °C (-40 °F – 140 °F) Humidity 90% or less (non-condensing) |
|
| Power Supply: | 12 VDC±15% | |
| Weather Proof: | IP66 | |
| IR Range: | Up to 20m | |
| Dimension: | Φ70×149.5 mm (Φ2.76” ×5.89”) | |
| Weight: | 400 g | |
DS-2CE16C0T-IT5 HikVision -TVI TURBO HD camera Hikvision DS-2CE16C0T-IT5 has been designed for use in CCTV systems based on HD-TVI DVRs. The camera provides 720p video. With sensitivity of 0.1 lx and built-in IR illuminator with range up to 30 m, the camera provides high quality images in low light or even no-light conditions (with IR).
| Camera | ||
|---|---|---|
| Image Sensor: | 1MP CMOS Image Sensor | |
| Signal System: | PAL/NTSC | |
| Effective Pixels: | 1296(H)x732(V) | |
| Min. Illumination: | 0.1 Lux @(F1.2,AGC ON), 0 Lux with IR | |
| Shutter Time: | 1/25(1/30) s to 1/50,000 s | |
| Lens: | 3.6mm (6mm, 8mm, 12mm, 16mm optional), Angle of View: 70.9°(3.6mm), 56.7°(6mm), 38.6°(8mm), 27.5°(12mm), 17.7°(16mm) | |
| Lens Mount: | M12 | |
| Adjustment Range: | Pan: 0°-360°; Tilt:0°-180°; Rotation: 0°-360° | |
| Day& Night: | IR cut filter with auto switch | |
| Video Frame Rate: | 720p@25fps/720p@30fps | |
| HD Video Output: | 1 Analog HD output | |
| Synchronization: | Internal Synchronization | |
| S/N Ratio: | More than 62 dB | |
| General | ||
|---|---|---|
| Operating Conditions: | -40 °C – 60 °C (-40 °F – 140 °F) Humidity 90% or less (non-condensing) |
|
| Power Supply: | 12 VDC±15% | |
| Power Consumption: | Max. 5W | |
| Weather Proof: | IP66 | |
| IR Range: | Up to 80m | |
| Dimension: | 86.22×82.05×220.13mm(3.39”×3.23”×8.67”) | |
| Weight: | 700 g | |
Hikvision DS-2TD2637B Temperature Screening Thermographic Bullet camera is designed to detect elevated skin-surface temperature with high accuracy in real time. It can be used for preliminary temperature screening in office buildings, factories, stations, airports and other public places.
Model Number: DS-2TD2637B-10/P
Key features include:
● 384 × 288 high resolution in thermal channel, high sensitivity sensor
● Temperature range: 30°C to 45°C; temperature accuracy: ±0.5 °C
● Reliable temperature exception alarm function
● 4MP resolution in optical channel
● 3D DNR, image detail enhancement
Other specifications:
Image Sensor: VOx Uncooled Focal Plane Arrays
Resolution: 384×288
Pixel Interval: 17μm
Response Waveband: 8μm to 14μm
NETD: Less than 40 mK (@25°C,F#=1.0)
Focal Length: 9.7mm
Focus Mode: Athermalized
IFOV1.75 mrad
Image Sensor: 1/2.7″ Progressive Scan CMOS
Resolution: 2688×1520, 4MP
Min. Illumination: Color: 0.0089 Lux @(F1.6, AGC ON), B/W: 0.0018 Lux @(F1.6, AGC ON)
Field Of View: 84° × 44.8° (H × V)
Focal Length: 4mm
Focus Mode: Fixed
Shutter Speed: 1s to 1/100,000s
White Balance: Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Daylight Lamp/Sodium Lamp
Day & Night Mode: IR cut filter with auto switch
WDR: 120 dB
DS-2CE16C0T-IT3 Hikvision HD720P EXIR Bullet Camera. This Hikvision camera is true day and night with extended IR distance of 40M. It is designed to cover more distance than the conventional entry level Hikvision cameras.
Product/Brand:DS-2CE16C0T-IT3 Hikvision
| DS-2CE16C0T-IT3 Hikvision Camera | ||
|---|---|---|
| Image Sensor: | 1MP CMOS Image Sensor | |
| Signal System: | PAL/NTSC | |
| Effective Pixels: | 1296(H)x732(V) | |
| Min. Illumination: | 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR | |
| Shutter Time: | 1/25(1/30) s to 1/50,000 s | |
| Lens Mount: | M12 | |
| Adjustment Range: | Pan: 0 – 360°, Tilt: 0 – 180°, Rotation: 0 – 360° | |
| Day& Night: | IR cut filter with auto switch | |
| Video Frame Rate: | 720p@25fps/720p@30fps | |
| HD Video Output: | 1 Analog HD output | |
| Synchronization: | Internal Synchronization | |
| S/N Ratio: | More than 62 dB | |
| Hikvision General | ||
|---|---|---|
| Operating Conditions: | -40 °C – 60 °C (-40 °F – 140 °F) Humidity 90% or less (non-condensing) |
|
| Power Supply: | 12 VDC±15% | |
| Weather Proof: | IP66 | |
| IR Range: | Up to 40m | |
| Dimension: | 86.22×82.05×220.13mm(3.39”×3.23”×8.67”) | |
| Weight: | 700 g | |
DS-2CE56C0T-IRP is Hikvision’s dome 720p camera. This device supports IR distance up to 20M, displays true images day and night.
| Camera | ||
|---|---|---|
| Image Sensor: | 1MP CMOS Image Sensor | |
| Signal System: | PAL/NTSC | |
| Effective Pixels: | 1296(H)x732(V) | |
| Min. Illumination: | 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR | |
| Shutter Time: | 1/25(1/30) s to 1/50,000 s | |
| Lens Mount: | M12 | |
| Adjustment Range: | Pan: 0 – 360°, Tilt: 0 – 75°, Rotation: 0 – 360° | |
| Day& Night: | IR cut filter with auto switch | |
| Video Frame Rate: | 720p@25fps/720p@30fps | |
| HD Video Output: | 1 Analog HD output | |
| Synchronization: | Internal Synchronization | |
| S/N Ratio: | More than 62 dB | |
| General | ||
|---|---|---|
| Operating Conditions: | -20 °C – 45 °C (-4 °F – 113 °F) Humidity 90% or less (non-condensing) |
|
| Power Supply: | 12 VDC±15% | |
| IR Range: | Up to 20m | |
| Dimension: | Φ89.5 × 69.8 mm(Φ3.52” × 2.75”) | |
| Weight: | 250 g | |
This Hikvision Turbo HD Camera (DS-2CE16C0T-IRP) is an entry level outdoor camera with 720P camera resolution and infrared. The Analog HD output is up up to 720P resolution, it is true day and night with an IR distance is of up to 20m.
Product: DS-2CE16C0T-IRP Hikvision
| Hikvision DS-2CE16C0T-IRP 720P Turbo HD Camera features | ||
|---|---|---|
| Image Sensor: | 1MP CMOS Image Sensor | |
| Signal System: | PAL/NTSC | |
| Effective Pixels: | 1296(H)x732(V) | |
| Min. Illumination: | 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR | |
| Shutter Time: | 1/25(1/30) s to 1/50,000 s | |
| Lens Mount: | M12 | |
| Adjustment Range: | Pan: 0 – 360°, Tilt: 0 – 180°, Rotation: 0 – 360° | |
| Day& Night: | IR cut filter with auto switch | |
| Video Frame Rate: | 720p@25fps/720p@30fps | |
| HD Video Output: | 1 Analog HD output | |
| Synchronization: | Internal Synchronization | |
| S/N Ratio: | More than 62 dB | |
| General | ||
|---|---|---|
| Operating Conditions: | -40 °C – 60 °C (-40 °F – 140 °F) Humidity 90% or less (non-condensing) |
|
| Power Supply: | 12 VDC±15% | |
| Weather Proof: | IP66 | |
| IR Range: | Up to 20m | |
| Dimension: | Φ70×149.5 mm (Φ2.76” ×5.89”) | |
| Weight: | 300 g | |
DS-7332HQHI-K4 Hikvision is a 32 channel Turbo HD digital video recorder supports H.265 Pro+/H.265 Pro/H.265 video compression and HDTVI/AHD/CVI/CVBS/IP video input. This device contains 4 SATA interfaces with up to 10TB when you affix hard drives.
Product: DS-7332HQHI-K4 Hikvision
| Video/Audio Input | ||
|---|---|---|
| Audio Input: | 4-ch | |
| Video Compression: | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 | |
| Analog and HD-TVI video input: | 32-ch,BNC interface (1.0Vp-p, 75 Ω)connection | |
| Supported camera types: | Support HDTVI input: 4MP,3 MP, 1080p/25Hz, 1080p/30Hz, 720p/25Hz, 720p/30Hz, 720P/50Hz, 720p/60Hz Note: When the 3 MP signal input is only available for channel 1/2/3/4. AHD input: 4MP,1080p/25Hz, 1080p/30Hz, 720p/25Hz, 720p/30Hz CVI input: 1080p25, 1080p30, 720p25, 720p30 with CVBS input |
|
| Video Input Interface: | BNC (1.0 Vp-p, 75Ω) | |
| Audio Compression: | G.711u | |
| Audio Input Interface: | 4-ch, RCA (2.0 Vp-p, 1 KΩ) | |
| Two-way Audio: | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using audio input) | |
| Video/Audio Output | ||
|---|---|---|
| CVBS Output: | 1-ch,BNC(1.0Vp-p,75Ω),resolution:PAL:704×576,NTSC:704×480 | |
| HDMI2 Output: | 1-ch,4K(3840 × 2160)/30Hz,2K(2560 × 1440)/60Hz,1920×1080/60Hz,1280 × 1024/60Hz,1280 × 720/60Hz, 1024 × 768/60Hz | |
| HDMI/VGA Output: | 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz | |
| Recording resolution: | 1080p Lite mode not enabled: 4 MP lite/3 MP/1080p/1080p lite/720p/WD1/4CIF/VGA/CIF 1080p Lite mode enabled: 4 MP lite/3 MP/1080p lite/720p/720p lite/WD1/4CIF/VGA/CIF |
|
| Frame Rate: | Main stream: When 1080p Lite mode not enabled: For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) 3 MP stream access: 3 MP/1080p/720p/WD1/4CIF/VGA/CIF@15fps 1080p stream access: 1080p/720p@15fps; 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) When the 1080p Lite is mode enabled: For when the 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p lite/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) 3 MP stream access: 3 MP/1080p lite/720p lite/WD1/4CIF/VGA/CIF@15fps 1080p stream access: 1080p lite/720p lite/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) |
|
| Video Bit Rate: | 32 Kbps-6 Mbps | |
| Stream Type: | Video/Video&Audio | |
| Two-way Audio: | 1-ch, RCA (2.0 Vp-p, 1 kΩ) (independent) | |
| Audio Output: | 1-ch RCA(Linear, 1kΩ) | |
| Dual Stream: | Support | |
| Synchronous Playback: | 16-ch | |
| Network management | ||
|---|---|---|
| Remote connections: | 128 | |
| Network protocols: | TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P,DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?, HTTPS,ONVIF | |
| Hard Disk Driver | ||
|---|---|---|
| Interface Type: | 4 SATA Interfaces | |
| Capacity: | Up to 10 TB capacity for each disk | |
| External Interface | ||
|---|---|---|
| Network Interface: | 1; 10M / 100M / 1000M self-adaptive Ethernet interface | |
| USB Interface: | 2 USB 2.0 Interface on the front panel& 1 USB 3.0 Interface on the rear panel | |
| Alarm Input: | 16-ch | |
| Alarm Output: | 4-ch | |
| General | ||
|---|---|---|
| Power Supply: | 100 to 240 VAC | |
| Consumption: | ≤ 45W(without hard disks) | |
| Working Temperature: | -10 oC to +55 oC (+14 oF to +131 oF) | |
| Working Humidity: | 10% to 90% | |
| Dimensions: | 440 × 390 × 70 mm (17.3 × 15.4 × 2.8 inch) | |
| Weight: | ≤ 7 kg (15.4 lb) | |
Hikvision DS-7324HQHI-K4 is a 24 channel digital video recorder that supports H.265 Pro+/H.265 Pro/H.265 video compression and HDTVI/AHD/CVI/CVBS/IP video input. This device, Hikvision DS-7324HQHI-K4 DVR takes a maximum of 40/48 IP cameras input (up to 6 MP). Max. 800 m for 1080p and 1200 m for 720p HDTVI signal transmission.
SATA Interfaces:
DS-7324HQHI-K4 supports up to 10 TB capacity per HDD and has 4 SATA interfaces.
| Video/Audio Input | ||
|---|---|---|
| Audio Input: | 4-ch | |
| Video Compression: | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 | |
| Analog and HD-TVI video input: | 24-ch,BNC interface (1.0Vp-p, 75 Ω)connection | |
| Supported camera types: | HDTVI input: 4MP,3 MP, 1080p/25Hz, 1080p/30Hz, 720p/25Hz, 720p/30Hz, 720P/50Hz, 720p/60Hz Note: The 3 MP signal input is only available for channel 1/2/3/4. AHD input: 4MP,1080p/25Hz, 1080p/30Hz, 720p/25Hz, 720p/30Hz CVI input: 1080p25, 1080p30, 720p25, 720p30 support CVBS input |
|
| Video Input Interface: | BNC (1.0 Vp-p, 75Ω) | |
| Audio Compression: | G.711u | |
| Audio Input Interface: | 4-ch, RCA (2.0 Vp-p, 1 KΩ) | |
| Two-way Audio: | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using audio input) | |
| Video/Audio Output | ||
|---|---|---|
| CVBS Output: | 1-ch,BNC(1.0Vp-p,75Ω),resolution:PAL:704×576,NTSC:704×480 | |
| HDMI2 Output: | 1-ch,4K(3840 × 2160)/30Hz,2K(2560 × 1440)/60Hz,1920×1080/60Hz,1280 × 1024/60Hz,1280 × 720/60Hz, 1024 × 768/60Hz | |
| HDMI/VGA Output: | 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz | |
| Recording resolution: | If the 1080p Lite mode not enabled: 4 MP lite/3 MP/1080p/1080p lite/720p/WD1/4CIF/VGA/CIF 1080p Lite mode enabled: 4 MP lite/3 MP/1080p lite/720p/720p lite/WD1/4CIF/VGA/CIF |
|
| Frame Rate: | Main stream: 1080p Lite mode not enabled: For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 3 MP stream access: 3 MP/1080p/720p/WD1/4CIF/VGA/CIF@15fps For 1080p stream access: 1080p/720p@15fps; 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) 1080p Lite mode enabled: For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p lite/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) 3 MP stream access: 3 MP/1080p lite/720p lite/WD1/4CIF/VGA/CIF@15fps 1080p stream access: 1080p lite/720p lite/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) |
|
| Video Bit Rate: | 32 Kbps-6 Mbps | |
| Stream Type: | Video/Video&Audio | |
| Two-way Audio: | 1-ch, RCA (2.0 Vp-p, 1 kΩ) (independent) | |
| Audio Output: | 1-ch RCA(Linear, 1kΩ) | |
| Dual Stream: | Support | |
| Synchronous Playback: | 16-ch | |
| Network management | ||
|---|---|---|
| Remote connections: | 128 | |
| Network protocols: | TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P,DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?, HTTPS,ONVIF | |
| Hard Disk Driver | ||
|---|---|---|
| Interface Type: | 4 SATA Interfaces | |
| Capacity: | Up to 10 TB capacity for each disk | |
| External Interface | ||
|---|---|---|
| Network Interface: | 1; 10M / 100M / 1000M self-adaptive Ethernet interface | |
| USB Interface: | 2 USB 2.0 Interface on the front panel& 1 USB 3.0 Interface on the rear panel | |
| Serial Interface: | 1 RS-232 serial interface 1 RS-485 serial interface, full-duplex,1 RS-485 keyboard interface |
|
| Alarm Input: | 16-ch | |
| Alarm Output: | 4-ch | |
| General | ||
|---|---|---|
| Power Supply: | 100 to 240 VAC | |
| Consumption: | ≤ 45 W | |
| Working Temperature: | -10 oC to +55 oC (+14 oF to +131 oF) | |
| Working Humidity: | 10% to 90% | |
| Dimensions: | 440 × 390 × 70 mm (17.3 × 15.4 × 2.8 inch) | |
| Weight: | ≤ 7 kg (15.4 lb) | |
Hikvision DS-7232HQHI-K2 is a 32 channel DVR which supports H.265+/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of analog cameras. This DVR is self-adaptive and is embedded with HDTVI/HDCVI/AHD/CVBS signal input. Connectable to H.265+/H.265/H.264+/H.264 IP cameras.
| Video/Audio Input | ||
|---|---|---|
| Audio Input: | 1-ch | |
| Analog and HD-TVI video input: | 24-ch, BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection | |
| Supported camera types: | Support HDTIV input:4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25 Note: The 3 MP signal input is only available for channel 1/2/3/4. Support AHD input:4 MP, 1080p25, 1080p30, 720p25, 720p30 Support HDCVI input: 1080p25, 1080p30, 720p25, 720p30 Support CVBS input:PAL/NTSC |
|
| Video Input Interface: | BNC (1.0 Vp-p, 75Ω) | |
| Audio Compression: | G.711u | |
| Audio Input Interface: | RCA (2.0 Vp-p, 1 kΩ) | |
| Two-way Audio: | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the 1st channel of audio input) | |
| Video/Audio Output | ||
|---|---|---|
| CVBS Output: | 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 | |
| HDMI/VGA Output: | 1-ch,4K (3840 × 2160)/30Hz,2K(2560 ×1440)/60Hz, 1920 ×1080/60Hz, 1280 ×1024/60 Hz, 1280 ×720/60Hz, 1024 ×768/60 Hz | |
| Frame Rate: | Main stream: When 1080p Lite mode not enabled: For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) When 1080p Lite mode enabled: 4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) Sub-stream: WD1/4CIF@12fps; CIF@25fps (P)/30fps (N) |
|
| Video Bit Rate: | 32 Kbps-6 Mbps | |
| Stream Type: | Video/Video&Audio | |
| Two-way Audio: | 1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input) | |
| Audio Output: | 1-ch RCA(Linear, 1kΩ) | |
| Audio Bit Rate: | 64kbps | |
| Dual Stream: | Support | |
| Synchronous Playback: | 16-ch | |
| Network management | ||
|---|---|---|
| Remote connections: | 128 | |
| Network protocols: | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF | |
| Hard Disk Driver | ||
|---|---|---|
| Interface Type: | 2 SATA Interfaces | |
| External Interface | ||
|---|---|---|
| Network Interface: | 1 RJ45 10M/100M/1000M adaptive Ethernet Interface | |
| USB Interface: | 1 USB 2.0 Interface & 1 USB 3.0 Interface | |
| Serial Interface: | 1; standard RS-485 serial interface, half-duplex | |
| General | ||
|---|---|---|
| Power Supply: | 12 VDC | |
| Consumption: | ≤ 65 W | |
| Working Temperature: | -10 ºC to +55 ºC (+14 ºF to +131 ºF) | |
| Working Humidity: | 10% to 90% | |
| Dimensions: | 380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch) | |
| Weight: | ≤ 2 kg (4.4 lb | |
DS-7224HQHI-K2 Hikvision is a 24-channel, 1080P digital video recorder that supports H.265+/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of analog cameras. Hikvision DS-7224HQHI-K2 has self-adaptive HDTVI/HDCVI/AHD/CVBS signal input
| Video/Audio Input | ||
|---|---|---|
| Audio Input: | 1-ch | |
| Analog and HD-TVI video input: | 24-ch, BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection | |
| Supported camera types: | Support HDTIV input:4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25 Note: The 3 MP signal input is only available for channel 1/2/3/4. Support AHD input:4 MP, 1080p25, 1080p30, 720p25, 720p30 Support HDCVI input: 1080p25, 1080p30, 720p25, 720p30 Support CVBS input:PAL/NTSC |
|
| Video Input Interface: | BNC (1.0 Vp-p, 75Ω) | |
| Audio Compression: | G.711u | |
| Audio Input Interface: | RCA (2.0 Vp-p, 1 kΩ) | |
| Two-way Audio: | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the 1st channel of audio input) | |
| Video/Audio Output | ||
|---|---|---|
| CVBS Output: | 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 | |
| HDMI/VGA Output: | 1-ch,4K (3840 × 2160)/30Hz,2K(2560 ×1440)/60Hz, 1920 ×1080/60Hz, 1280 ×1024/60 Hz, 1280 ×720/60Hz, 1024 ×768/60 Hz | |
| Frame Rate: | Main stream: When 1080p Lite mode not enabled: For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) When 1080p Lite mode enabled: 4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) Sub-stream: WD1/4CIF@12fps; CIF@25fps (P)/30fps (N) |
|
| Video Bit Rate: | 32 Kbps-6 Mbps | |
| Stream Type: | Video/Video&Audio | |
| Two-way Audio: | 1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input) | |
| Audio Output: | 1-ch RCA(Linear, 1kΩ) | |
| Audio Bit Rate: | 64kbps | |
| Dual Stream: | Support | |
| Synchronous Playback: | 16-ch | |
| Network management | ||
|---|---|---|
| Remote connections: | 128 | |
| Network protocols: | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF | |
| Hard Disk Driver | ||
|---|---|---|
| Interface Type: | 2 SATA Interfaces | |
| External Interface | ||
|---|---|---|
| Network Interface: | 1 RJ45 10M/100M/1000M adaptive Ethernet Interface | |
| USB Interface: | 1 USB 2.0 Interface & 1 USB 3.0 Interface | |
| Serial Interface: | 1; standard RS-485 serial interface, half-duplex | |
| General | ||
|---|---|---|
| Power Supply: | 12 VDC | |
| Consumption: | ≤ 55 W | |
| Working Temperature: | -10 ºC to +55 ºC (+14 ºF to +131 ºF) | |
| Working Humidity: | 10% to 90% | |
| Dimensions: | 380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch) | |
| Weight: | ≤ 2 kg (4.4 lb)[wpseo_opening_hours show_days=”monday,tuesday,wednesday,thursday,friday”][wpseo_opening_hours show_days=”monday,tuesday,wednesday,thursday,friday”] | |
DS-7232HGHI-K2 is Hikvision‘s 32 channel Digital Video Recorder with support for 32 camera and 2 SATA interfaces for 2 hard disk drives.
| Video/Audio Input | ||
|---|---|---|
| Audio Input: | 1-ch | |
| Video Compression: | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 | |
| Analog and HD-TVI video input: | 32-ch,BNC interface (1.0Vp-p, 75 Ω)connection | |
| Supported camera types: | Support HDTVI input: 1080p25, 1080p30, 720p25, 720p30 Support AHD input: 1080p25, 1080p30, 720p25, 720p30 Support CVI input: 1080p25, 1080p30, 720p25, 720p30 Support CVBS input |
|
| Video Input Interface: | BNC (1.0 Vp-p, 75Ω) | |
| Audio Compression: | G.711u | |
| Audio Input Interface: | RCA (2.0 Vp-p, 1 kΩ) | |
| Two-way Audio: | 1-ch, RCA (2.0 Vp-p, 1 KΩ), (using the 1st channel of audio input) | |
| Video/Audio Output | ||
|---|---|---|
| CVBS Output: | 1-ch,BNC(1.0Vp-p,75Ω),resolution:PAL:704×576,NTSC:704×480 | |
| HDMI/VGA Output: | HDMI: 1-ch,4K(3840×2160)/30Hz,2K(2560×1440)/60Hz, 1920×1080/60Hz, 1280×1024/60Hz,1280×720/60Hz,1024 ×768/60Hz VGA:1-ch,2K(2560×1440)/60Hz,1920×1080/60Hz,1280×1024/60Hz,1280×720/60Hz,1024×768/60Hz |
|
| Recording resolution: | 1080p/720p/VGA/WD1/4CIF/CIF | |
| Frame Rate: | Main stream: For 1080p stream access: 1080p lite/720p lite/WD1/4CIF/VGA@15fps; CIF@25fps (P)/30fps (N) For 720p stream access: 720p/WD1/4CIF/VGA@15fps; CIF@25fps (P)/30fps (N) For standard definition stream access: WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) Sub-stream: For 1080p and 720p stream access: CIF/QVGA@15fps For standard definition stream access: CIF/QVGA@25fps (P)/30fps (N) |
|
| Video Bit Rate: | 32 Kbps ~ 4 Mbps | |
| Stream Type: | Video/Video&Audio | |
| Two-way Audio: | 1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input) | |
| Audio Output: | 1-ch RCA(Linear, 1kΩ) | |
| Audio Bit Rate: | 64kbps | |
| Dual Stream: | Support | |
| Synchronous Playback: | 16-ch | |
| Network management | ||
|---|---|---|
| Remote connections: | 128 | |
| Network protocols: | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF | |
| Hard Disk Driver | ||
|---|---|---|
| Interface Type: | 2 SATA Interfaces | |
| Capacity: | Up to 10 TB capacity for each disk | |
| External Interface | ||
|---|---|---|
| Network Interface: | 1; 10M / 100M / 1000M self-adaptive Ethernet interface | |
| USB Interface: | 1 USB 2.0 Interface & 1 USB 3.0 Interface | |
| General | ||
|---|---|---|
| Power Supply: | 12 VDC | |
| Consumption: | ≤ 18 W | |
| Working Temperature: | -10 oC to +55 oC (14 oF to 131 oF) | |
| Working Humidity: | 10% to 90% | |
| Dimensions: | 380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch) | |
| Weight: | ≤ 2.2 kg (4.9 lb) | |
DS-7224HGHI-K2 is Hikvision‘s 24 Channel Turbo HD Digital Video Recorder. It supports 24 camera with 2 hard drive slots.
| Video/Audio Input | ||
|---|---|---|
| Audio Input: | 1-ch | |
| Video Compression: | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 | |
| Analog and HD-TVI video input: | 24-ch,BNC interface (1.0Vp-p, 75 Ω)connection | |
| Supported camera types: | Support HDTVI input: 1080p25, 1080p30, 720p25, 720p30 Support AHD input: 1080p25, 1080p30, 720p25, 720p30 Support CVI input: 1080p25, 1080p30, 720p25, 720p30 Support CVBS input |
|
| Video Input Interface: | BNC (1.0 Vp-p, 75Ω) | |
| Audio Compression: | G.711u | |
| Audio Input Interface: | RCA (2.0 Vp-p, 1 kΩ) | |
| Two-way Audio: | 1-ch, RCA (2.0 Vp-p, 1 KΩ), (using the 1st channel of audio input) | |
| Video/Audio Output | ||
|---|---|---|
| CVBS Output: | 1-ch,BNC(1.0Vp-p,75Ω),resolution:PAL:704×576,NTSC:704×480 | |
| HDMI/VGA Output: | HDMI: 1-ch,4K(3840×2160)/30Hz,2K(2560×1440)/60Hz, 1920×1080/60Hz, 1280×1024/60Hz,1280×720/60Hz,1024 ×768/60Hz VGA:1-ch,2K(2560×1440)/60Hz,1920×1080/60Hz,1280×1024/60Hz,1280×720/60Hz,1024×768/60Hz |
|
| Recording resolution: | 1080p/720p/VGA/WD1/4CIF/CIF | |
| Frame Rate: | Main stream: For 1080p stream access: 1080p lite/720p lite/WD1/4CIF/VGA@15fps; CIF@25fps (P)/30fps (N) For 720p stream access: 720p/WD1/4CIF/VGA@15fps; CIF@25fps (P)/30fps (N) For standard definition stream access: WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) Sub-stream: For 1080p and 720p stream access: CIF/QVGA@15fps For standard definition stream access: CIF/QVGA@25fps (P)/30fps (N) |
|
| Video Bit Rate: | 32 Kbps ~ 4 Mbps | |
| Stream Type: | Video/Video&Audio | |
| Two-way Audio: | 1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input) | |
| Audio Output: | 1-ch RCA(Linear, 1kΩ) | |
| Audio Bit Rate: | 64kbps | |
| Dual Stream: | Support | |
| Synchronous Playback: | 16-ch | |
| Network management | ||
|---|---|---|
| Remote connections: | 128 | |
| Network protocols: | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF | |
| Hard Disk Driver | ||
|---|---|---|
| Interface Type: | 2 SATA Interfaces | |
| Capacity: | Up to 10 TB capacity for each disk | |
| External Interface | ||
|---|---|---|
| Network Interface: | 1; 10M / 100M / 1000M self-adaptive Ethernet interface | |
| USB Interface: | 1 USB 2.0 Interface & 1 USB 3.0 Interface | |
| General | ||
|---|---|---|
| Power Supply: | 12 VDC | |
| Consumption: | ≤ 18 W | |
| Working Temperature: | -10 oC to +55 oC (14 oF to 131 oF) | |
| Working Humidity: | 10% to 90% | |
| Dimensions: | 380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch) | |
| Weight: | ≤ 2.2 kg (4.9 lb) | |
The 16-Port 10/100 Mb/s PoE-Compliant Unmanaged Network Switch DS-3E0318P-E from Hikvision gives you the ability to deploy devices on your network that do not have access to power lines or outlets. By utilizing PoE (Power Over Ethernet), both power and data is transmitted over the connection. With up to 30W per port, you can network and power devices such as IP cameras, VoIP phones, IP telephones, wireless access points, and more.
This DS-3E0318P-E switch supports a total switching fabric bandwidth of up to 7.2 Gb/s, and a 2.75Mb RAM data buffer helps decrease latency to accommodate heavy traffic. The sturdy metal enclosure features plug-and-play installation and 4kV of built-in surge protection from Hikvision.
Find other related items here.
| Ports | ||
|---|---|---|
| Network Ports: | 18 | |
| PoE Port: | 16, 10/100Mbps RJ45 ports | |
| Uplink Port: | 2, 1000M Combo Port | |
| Standard | ||
|---|---|---|
| Network Protocol: | IEEE802.3,802.3u,802.3x, 802.3af, 802.3at | |
| Performance | ||
|---|---|---|
| Switching Capacity: | 7.2Gbps | |
| Max. Forwarding Rate: | 5.36Mpps | |
| High Priority Ports: | Ports 1-8 | |
| Forwarding Mode: | Store-and-forward | |
| MAC Address Table: | 4k | |
| Flow Control: | IEEE802.3x full duplex | |
| Power Over Ethernet | ||
|---|---|---|
| PoE Standard: | IEEE802.3af, IEEE802.3at | |
| PoE Power Budget: | 230W | |
| Working Mode: | Extend On:250m,10M,CAT 5e Extend Off:100m |
|
| General | ||
|---|---|---|
| Power Supply: | 100-240V AC, 50/60Hz | |
| Power Consumption: | ≤250W | |
| Surge Protection: | 4KV | |
| Working Temperature: | Temperature: 0℃-40℃ | |
| Working Humidity: | Humidity: 10%-90% , non-condensing | |
| Storage Temperature: | Temperature: -40℃-70℃ | |
| Storage Humidity: | Humidity: 5%-90% , non-condensing | |
| Weight: | 3.72kg | |
| Dimension: | 440mm*285mm*43mm | |
| Accessories | ||
|---|---|---|
| SFP modules (Optional): | HK-1.25G-20-1550: 1000M SFP module, TX1550nm/RX1310nm, LC, single-mode single-fiber, 20km HK-155M-20-1550: 100M SFP module, TX1550nm/RX1310nm, LC, single-mode single-fiber, 20km |
|
| General | ||
|---|---|---|
| Output Contact: | NO/NC/COM Contact | |
| Current Rating: | 3A@36VDC Max | |
| Material: | Fireproof Material, Sandblast Finished | |
| Appearance Color: | Red or Green | |
| Suitable Doors: | Exit door, Emergency door | |
| Working Humidity: | 0 to 95% (relative humidity) | |
| Working Temperature : | -10° C to 55° C (14° F to 131° F) | |
| Dimensions (L×W×H): | 86mm × 86mm × 50mm(3.39” × 3.39” × 1.97”) | |
| Weight: | 0.20kg (0.44lb) | |
Hikvision U-Bracket of Magnetic Lock is suitable access control magnetic lock for DS-K4H250/D. This Hikvision door access control is suitable for frameless glass door, opens at the angle of 90°.
The U-bracket adopts aldural material with the surface sandblast. The U-bracket is suitable for magnetic lock of 300kg series. The shell is hard anodizing electroplating operated. The thickness of glass should be 10 to 15mm. The weight of the U-bracket is 0.32kg (0.70lb). The dimension (L×W×H) of U-bracket is 180×40×28mm (7.09×1.57×1.10”).
View more Access control accessories.
| General | ||
|---|---|---|
| Material: | aldural material with the surface sandblast | |
| dimension(L×W×H) of U-bracket: | 180×40×28mm (7.09×1.57×1.10″) | |
| Suitable Doors: | frameless glass door, opens at the angle of 90°,thickness of glass should be 10 to 15mm | |
| Shell: | hard anodizing electroplating operated | |
| Weight: | 0.32kg (0.70lb) | |
| General | ||
|---|---|---|
| Output Contact: | NO/NC/COM Contact | |
| Aging Test: | already passed 500 thousand times aging test | |
| Structure: | stainless steel panel, metal button, metal bottom case | |
| Current Rating: | 3A@36VDC Max | |
| Accessories: | equipped with metal bottom case | |
| Suitable Doors: | all kinds of narrow doorframes | |
| Panel: | brushed stainless steel panel | |
| Bottom Case: | polished zinc alloy with chromium electroplating | |
| Working Humidity: | 0 to 95% (relative humidity) | |
| Working Temperature : | -20°C to +65°C (-4°F to +149°F) | |
| Dimensions (L×W×H): | 87.7mm × 87.7mm × 44mm(3.46”×3.46”×2.13″) | |
| Weight: | 0.23kg (0.51lb) | |
| General | ||
|---|---|---|
| Output Contact: | NO/NC/COM Contact | |
| Aging Test: | already passed 500 thousand times aging test | |
| Structure: | stainless steel panel, metal button, metal bottom case | |
| Current Rating: | 3A@36VDC Max | |
| Accessories: | equipped with metal bottom case | |
| Suitable Doors: | all kinds of narrow doorframes | |
| Panel: | brushed stainless steel panel | |
| Bottom Case: | polished zinc alloy with chromium electroplating | |
| Working Humidity: | 0 to 95% (relative humidity) | |
| Working Temperature : | -20°C to +65°C (-4°F to +149°F) | |
| Dimensions (L×W×H): | 87.7mm × 87.7mm × 44mm(3.46”×3.46”×2.13″) | |
| Weight: | 0.23kg (0.51lb) | |
| General | ||
|---|---|---|
| Output Contact: | NO/NC/COM Contact | |
| Aging Test: | already passed 500 thousand times aging test | |
| Structure: | stainless steel panel, metal button, metal bottom case | |
| Current Rating: | 3A@36VDC Max | |
| Accessories: | equipped with metal bottom case | |
| Suitable Doors: | all kinds of narrow doorframes | |
| Panel: | brushed stainless steel panel | |
| Bottom Case: | polished zinc alloy with chromium electroplating | |
| Working Humidity: | 0 to 95% (relative humidity) | |
| Working Temperature : | -10° C to 55° C (14° F to 131° F) | |
| Dimensions (L×W×H): | 86mm × 50mm × 44mm(3.39” × 1.97” × 1.73″) | |
| Weight: | 0.14kg (0.31lb) | |
| General | ||
|---|---|---|
| Output Contact: | NO/NC/COM Contact | |
| Aging Test: | already passed 500 thousand times aging test | |
| Structure: | stainless steel panel, metal button, metal bottom case | |
| Current Rating: | 3A@36VDC Max | |
| Accessories: | equipped with metal bottom case | |
| Suitable Doors: | all kinds of narrow doorframes | |
| Panel: | brushed stainless steel panel | |
| Bottom Case: | polished zinc alloy with chromium electroplating | |
| Working Humidity: | 0 to 95% (relative humidity) | |
| Working Temperature : | -10° C to 55° C (14° F to 131° F) | |
| Dimensions (L×W×H): | 86mm × 50mm × 44mm(3.39” × 1.97” × 1.73″) | |
| Weight: | 0.14kg (0.31lb) | |
This Hikvision Access Control terminal is an exit button suitable for hollow door frame and embedded electric box.
| General | ||
|---|---|---|
| Output Contact: | NO/NC/COM Contact | |
| Aging Test: | Access control already passed 500 thousand times aging test | |
| Structure: | aluminum alloy panel, metal button | |
| Current Rating: | 3A@36VDC Max | |
| Suitable Doors: | hollow doorframe and embedded-electric box | |
| Panel: | Access Control aluminum panel with sandblast | |
| Working Humidity: | 0 to 95% (relative humidity) | |
| Working Temperature : | -10° C to 55° C (14° F to 131° F) | |
| Dimensions (L×W×H): | 90mm × 35mm × 28.9mm(3.54” × 1.38” × 1.14″) | |
| Weight: | 0.20kg (0.44lb) | |
This Hikvision Access Control terminal is an exit button suitable for hollow door frame and embedded electric box.
| General | ||
|---|---|---|
| Output Contact: | NO/NC/COM Contact | |
| Aging Test: | Access control already passed 500 thousand times aging test | |
| Structure: | aluminum alloy panel, metal button | |
| Current Rating: | 3A@36VDC Max | |
| Suitable Doors: | hollow doorframe and embedded-electric box | |
| Panel: | Access Control aluminum panel with sandblast | |
| Working Humidity: | 0 to 95% (relative humidity) | |
| Working Temperature : | -10° C to 55° C (14° F to 131° F) | |
| Dimensions (L×W×H): | 90mm × 35mm × 28.9mm(3.54” × 1.38” × 1.14″) | |
| Weight: | 0.20kg (0.44lb) | |
Luminous 1.5KVA Solar Inverter Hybrid UPS is a micro controller based pure sine wave hybrid UPS with high efficiencies. It accepts hybrid charging from both solar and mains with priority to solar. Luminous solar home ups has all the required protections against high temperatures, short circuit and overloading. It ensures lesser battery charging time and maximum solar utilization.
KEY FEATURES:
Luminous Inverter (Zelio) UPS is an advanced intelligent UPS with convenience features such as back up time display, hassle-free battery water level indicators, MCB protection and is equipped with a bypass switch which keeps supplying output from the grid even in case of UPS faults.
KEY FEATURES OF LUMINOUS ZELIO INVERTER
| MODEL | ZELIO 1100 | ZELIO 1700 |
|---|---|---|
| Capacity | 900VA | 1500VA |
| Input | ||
| Voltage | 110-290V | 110-290V |
| Output | ||
| Max. Bulb Load | 685 Watt | 1200 Watt |
| Battery | ||
| Maximum Charging Current | 15A | 17A |
| Physical | ||
| Gross Weight (Kg.) | 11.0 | 15.4 |
| Dimension LxWxH (cm) | 27.5×24.8×12 | 31x29x13.5 |
The Luminous Eco Volt Inverter is a pure sine wave home UPS with features such as Intelligent Water Level Indication which helps consumers to track the battery water level, and uses low harmonic distortion making the inverter practically noiseless. Pure sine wave output makes it highly efficient and helps bring down electricity bills.
Key Features:
| MODEL | ECO VOLT 1650 | |
|---|---|---|
| Capacity | 1500VA | |
| Input | ||
| Voltage | 100-290V | |
| Output | ||
| Max. Bulb Load | 1300 Watt | |
| Battery | ||
| Maximum Charging Current | 17A | |
| Physical | ||
| Gross Weight (Kg.) | 14.6 | |
| Dimension LxWxH (cm) | 30.5×27.5×13 | |
| Protection | ||
| Overload, Short-circuit, Deep Discharge, Reverse Polarity | ||
With Luminous Cruze UPS, you get a power back-up solution that can run everything! It’s the perfect solution for homes and small businesses (such as restaurants, clinics, petrol pumps, etc.). Cruze UPS can run sensitive and heavy load equipment in addition to meeting regular lighting requirements.
Some homes and commercial establishments have higher power needs, whilst some face frequent power cuts which hamper the overall performance of appliances. The Luminous higher KVA solutions offer high quality and reliable power back-up solutions for running such loads, meeting such needs and handling such equipment.
Luminous Cruze inverter is an advanced intelligent UPS with convenience features such as back up time display, hassle-free battery water level indicators, MCB protection and is equipped with a bypass switch which keeps supplying output from the grid even in case of system faults.
The Genus 2KVA/24V inverter is a 2VA output pure sine wave inverter, providing power backup that will sustain a range of domestic appliances or office equipment. The 2kva inverter offers sufficient capacity to meet an average household’s basic needs in terms of lighting points, fans, TV, PC, printer, etc. The Genus 2KVA inverter is a 24V inverter requiring a minimum of two units of 12V battery to run.
Features:
The Genus 1.5KVA/24V inverter is a 1500VA output pure sine wave inverter, providing power backup that will sustain a range of domestic appliances or office equipment. The 1.5kva inverter offers sufficient capacity to meet an average household’s basic needs in terms of lighting points, fans, TV, PC, printer, etc. The Genus 1.5KVA inverter is a 24V inverter requiring a minimum of two units of 12V battery to run.
The Genus 1.5kva inverter is built to withstand the rigors of heavy usage that is expected in our under-served environment and to deliver in overall performance.
The Mercury Deep Cycle Battery 200Ah 12V Elite 200. Leak-proof sealed maintenance free with a wide operating temperature, high impact resistant cast and low self-discharge.
This inverter battery comes with a protective tray. Also in the box are terminal covers that are colour coded for easy identification of battery polarity. These protect your battery, Inverter and also yourself from harm.
Product Specification:
Nominal Voltage 12v
Rated Capacity(20 Hour Rate) 200ah
Other features include:
20 Hour Rate (10.0A) 200AH
10 Hour Rate (18.4A) 184AH
5 Hour Rate (32.0A) 160AH
1 Hour Rate (120.0A) 120AH
15 Minute Rate (328A) 82.0AH
| Applications | Commercial Applications, Homes and Small Shops |
| Listing Description |
Tall Tubular Technology Capacity : 150 Ah Warranty : 60 Months |
| Products | Solar Batteries |
| Capacity @C10 | Greater than 100 |
| Solutions | DC Systems, Solutions With Backup |
| Capacity (Solar) | Large > 100Ah |
| Application Area | Commercial Applications, Homes and Small Shops |
| Warranty (Solar) | 5 Years |
| Height upto terminal | 411 |
| Length | 503 |
| Breadth | 189 |
| HSN Code | 85074011 |
Features:
