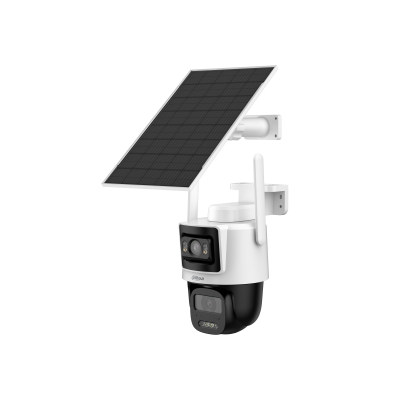

APOLLO BP6X-4G(2.8+6mm)

Camera（2.8 mm +6 mm）

Fixed Lens

Image Sensor

1/3″ CMOS

Max. Resolution

2304 (H) × 1296 (V)

Illumination Distance

Up to 30 m (98.43 ft) (IR)
Up to 20 m (65.62 ft) (Warm Light)

Illuminator Number

2 (IR LED); 2 (Warm light)

Angle Adjustment

Manual adjustment
Pan: 0° to 334°
Tilt: 0° to 25°

Lens Type

Fixed-focal

Focal Length

2.8 mm

Max. Aperture

F1.6

Field of View

H: 96°; V: 54°; D: 112°

PT Lens

Image Sensor

1/3″ CMOS

Max. Resolution

2304 (H) × 1296 (V)

Illumination Distance

Up to 50 m (164.04 ft) (IR)

Up to 40 m (131.23 ft) (Warm light)

Illuminator Number

2 (Multi-core (IR + warm) light); 1 pair (Red and blue warning light)

Angle Adjustment

Electrical adjustment
Pan: 0° to 350°
Tilt: 0° to 90°

Lens Type

Fixed-focal

Focal Length

6 mm

Max. Aperture

F1.6

Field of View

H: 49°; V: 27°; D: 58°

Camera ( 3.6mm+3.6mm )

Fixed Lens

Image Sensor

1/3″ CMOS

Max. Resolution

2304 (H) × 1296 (V)

Illumination Distance

Up to 30 m (98.43 f) (IR)

Up to 30 m (98.43 f) (Warm light)

Illuminator Number

2 (IR LED); 2 (Warm light)

Angle Adjustment

Manual adjustment
Pan: 0° to 334°
Tilt: 0° to 25°

Lens Type

Fixed-focal

Focal Length

3.6 mm

Max. Aperture

F1.6

Field of View

H: 79°; V: 43°; D: 94°

PT Lens

Image Sensor

1/3″ CMOS

Max. Resolution

2304 (H) × 1296 (V)

Illumination Distance

Up to 30 m (98.43 f) (IR)

Up to 30 m (98.43 f) (Warm light)

Illuminator Number

2 (Multi-core (IR + warm) light); 1 pair (Red and blue warning light)

Angle Adjustment

Electrical adjustment
Pan: 0° to 350°
Tilt: 0° to 90°

Lens Type

Fixed-focal

Focal Length

3.6 mm

Max. Aperture

F1.6

Field of View

H: 79°; V: 43°; D: 94°

Intelligence

Human Detection

Yes

Vehicle Detection

Yes

Audio and Video

Video Compression

H.265

Video Frame Rate

Main stream: 2304 × 1296@(1–15 fps)
*The values above are the max frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Video Bit Rate

H.265: 12 kbps–4096 kbps

WDR

Yes

Digital Zoom

Yes

Built-in MIC

Yes, built-in dual Mic

Built-in Speaker

Yes, built-in speaker

Audio Compression

G.711a; G.711Mu; PCM; AAC-LC

Built-in Speaker

Yes, built-in speaker

Audio Compression

G.711a; AAC-LC

Network

Network Port

RJ-45 (10/100 Base-T)

Carrier Network System

4G(-EAU/-EUR)
FDD-LTE: B2/B3/B4/B5/B7/B8/B28/B66
TDD-LTE: B38/B40/B41
Power class3: 23 dBm±2.7 Db
Applicable regions: Latin America;

4G(-LA)
FDD-LTE: B1/B3/B5/B7/B8/B20/B28
TDD-LTE: B38/B40/B41
Power class3: 23 dBm±2.7 dB
Applicable regions: Europe

Storage

Micro SD card (supports max 512 GB)

Management Software

DMSS

Mobile Client

Android;iOS

Mobile Client

iOS;Android

General

Certifications

CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
CE-RED: Radio Equipment Directive 2014/53/EU

Power Supply

USB (5 VDC±5%, 2 A)

Power Consumption

Performance Mode: 1578 mW (light off)/2434 mW (IR light on)/5306 mW(light on+PT+Warning light on+Speak on)

AOV Mode (0.5 fps): 138 mW (light off)/221 mW ((IR light on)

Ultra Power Saving Mode: 69 mW

Operating Temperature

–20 °C to +50 °C (–4 °F to +122 °F)

Operating Humidity

≤95% (RH), non-condensing

Protection

IP66

Anti-corrosion Level

Basic Protection
*The products are designed for general use and are applicable even in areas with no specific requirements for anti-corrosion protection.

Camera Button

Reset Button; Power Button

Casing Material

Plastic

Product Dimensions

172.5 mm × 142.7 mm × 276.3 mm (6.79″ × 5.62″ × 10.88″) (L × W × H)

Net Weight

0.94 kg (2.07 lb)

Battery

Battery Capacity

10000 mAh / 36 Wh

Operating Temperature

Charge (-EUR): –20 °C to +50 °C (–4 °F to +122 °F)
Charge: 0 °C to +50 °C (+32 °F to +122 °F)
Discharge: –20 °C to +60 °C (–4 °F to +140 °F)

Solar Module

Max. Power

8 W

Cell Type

Monocrystalline silicon
