Description
Long Description

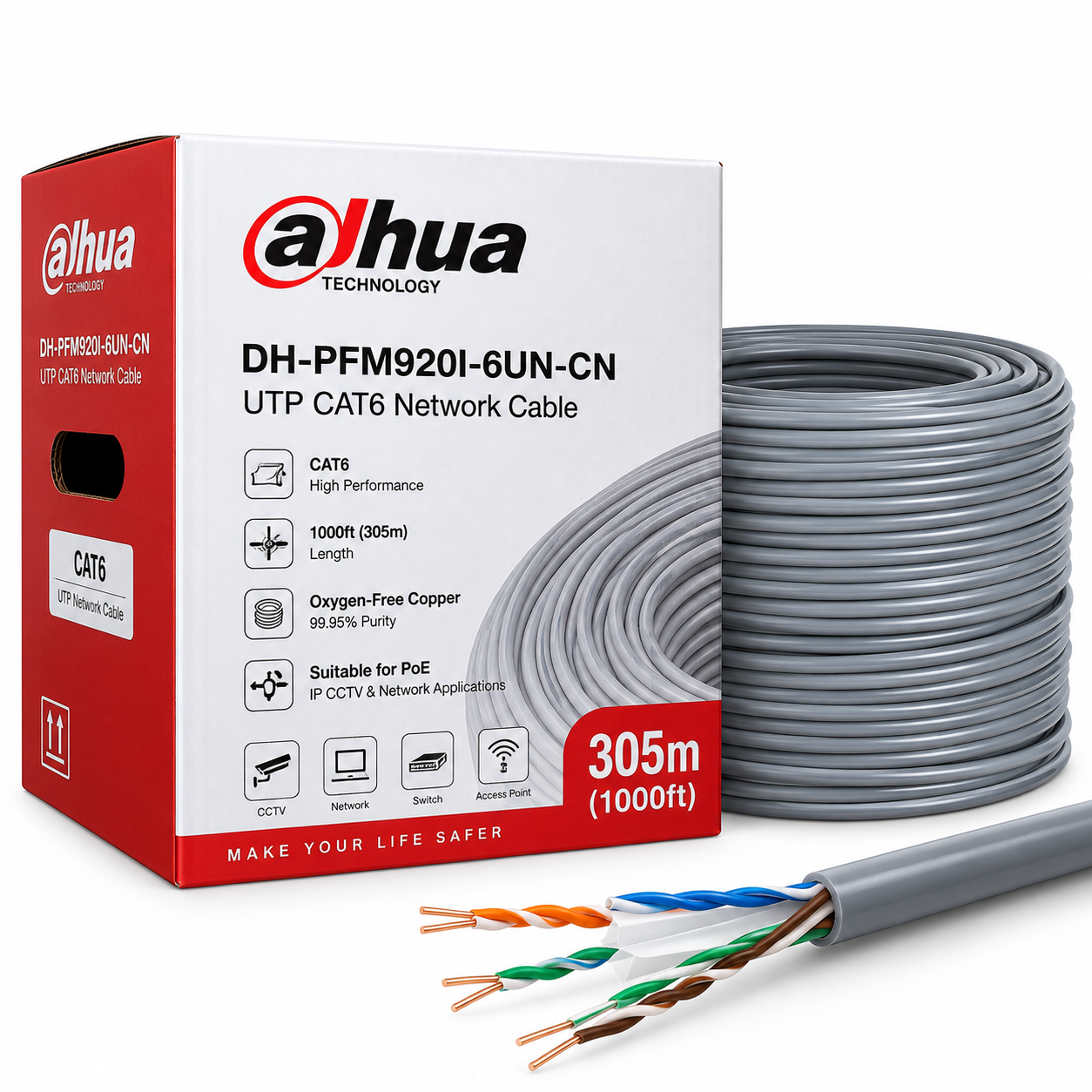

The DH-PFM920I-6UN-CN is a professional-grade CAT6 UTP network cable designed for structured network cabling, IP surveillance, and Power over Ethernet (PoE) applications. Supplied as a 305-metre (1,000 ft) carton, it provides sufficient cable length for larger CCTV and network installations.
The cable uses 99.95% oxygen-free copper conductors with a 0.53 mm diameter and 24 AWG specification, helping provide stable electrical performance and reliable signal transmission. Its four twisted pairs are individually insulated with HDPE and separated using a PE separator to help maintain transmission performance.
The cable is protected by a PVC outer sheath with a nominal diameter of approximately 5.8 mm. It is designed to operate from –20°C to +75°C and meets ANSI/TIA-568C.2 and CPR Eca requirements, making it suitable for professional structured cabling deployments.
Key Features
- CAT6 UTP network cable
- 305 m (1,000 ft) per carton
- 24 AWG
- 99.95% oxygen-free copper conductor
- Conductor diameter: 0.53 mm ± 0.02 mm
- 4 twisted pairs
- HDPE insulation
- PE separator
- PVC outer sheath
- Cable diameter: approximately 5.8 mm
- 100 ± 15Ω characteristic impedance
- Supports Power over Ethernet (PoE)
- Maximum DC resistance: 9.0Ω/100m
- Operating temperature: –20°C to +75°C
- Grey RAL7046 outer sheath
- Suitable for IP CCTV, NVR, switches and structured network installations
- Meets ANSI/TIA-568C.2
- CPR Eca compliant
- 10-year warranty from Dahua
