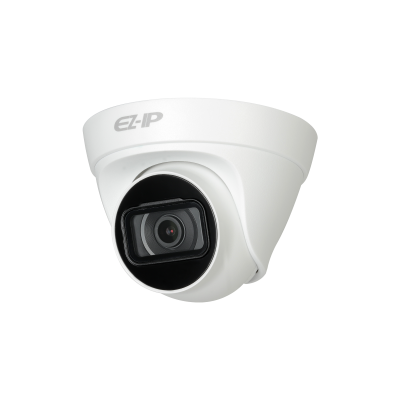

EZ-IPC-T1B40P Dahua 4MP IR Turret Network Camera
EZ-IPC-T1B40P Dahua 4MP IR Turret Network Camera

EZ-IPC-T1B40P Dahua 4MP IR Turret Network Camera

Availability:

EZ-IP is perfect for small to medium size applications like home/residential security, small retail shops, and other typical SMB applications. It offers a perfect alternative to migrate from analog to an IP system with its easy to use nature and cost effectiveness.

EZ-IP is fully in line with Dahua’s quality. Stable and reliable components are utilized and Various tests such as anti-vibration, water resistance, and aging tests are performed to ensure Dahua quality standards.

Functions
Smart Codec (H.265+ & H.264+)
Smart Codec is the optimized implementation of standard video compression (H.265 & H.264) that uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart Codec technology reduces bit rate and storage requirements by up to 70% when compared to the standard video compression.

True Day/Night
A day/night mechanical IR cut filter makes this camera ideal for applications with fluctuating lighting conditions, delivering color images during the day and automatically switching to monochrome as the scene darkens

Smart IR
With IR illumination, detailed images can be captured in low light or total darkness. The camera’s Smart IR technology adjusts to the intensity of camera’s infrared LEDs to compensate for the distance of an object. Smart IR technology prevents IR LEDS from whiting out images as they come closer to the camera. The camera’s integrated infrared illumination

Category:

Product Description

EZ-IPC-T1B40P Dahua 4MP IR Turret Network Camera

  • > 1/3” 4Megapixel progressive CMOS
  • H.265+ & H.265 dual-stream encoding
  • 20fps@4M(2560×1440) &25/30fps@3M(2304×1296)
  • DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC
  • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
  • 2.8 mm fixed lens (3.6mm optional)
  • Max IR LEDs Length 30m
  • IP67, PoE
Category:
Reviews

There are no reviews yet.

Be the first to review “EZ-IPC-T1B40P Dahua 4MP IR Turret Network Camera”

Previous Product DHI-NVR4216-16P-4KS2/L 16CH 16PoE 4K&H.265 Lite NVR
Next Product EZ-IPC-B1B40P 4MP IR Mini-Bullet Network Camera
