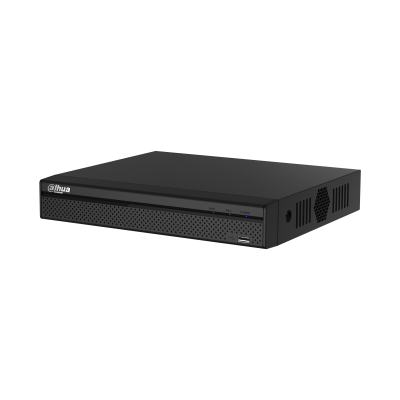

DHI-NVR4216-16P-4KS2/L 16CH 16PoE 4K&H.265 Lite NVR

Availability:

DHI-NVR4216-16P-4KS2/L 16CH 16PoE 4K&H.265 Lite NVR

  • Smart H.265+/H.265/Smart H.264+/H.264
  • Max 200Mbps Incoming Bandwidth
  • Up to 8MP Resolution for Preview and Playback
  • Up to 2ch@4K/8ch@1080P decoding
  • HDMI/VGA simultaneous video output
  • Support IPC UPnP, 16PoE ports

196,000.00

Quantity:
Category:

Product Description

DHI-NVR4216-16P-4KS2/L 16CH 16PoE 4K&H.265 Lite NVR

DHI-NVR4216-16P-4KS2/L 16CH 16PoE 4K&H.265 Lite NVR

System

Main Processor Quad-core embedded processor
Operating System Embedded LINUX

Audio and Video

IP Camera Input 16/32 Channel
Two-way Talk 1 Channel Input, 1 Channel Output, RCA

Display

Interface 1 HDMI, 1 VGA
Resolution HDMI: 3840×2160, 1920×1080, 1280×1024, 1280×720
VGA: 1920×1080, 1280×1024, 1280×720
Decoding Capacity 2ch@4K 30fps, 8ch@1080P 30fps
Multi-screen Display 16ch: 1/4/8/9/16
32ch: 1/4/8/9/16/25/36
OSD Camera title, Time, Camera lock, Motion detection, Recording

Recording

Compression Smart H.265+/H.265/Smart H.264+/H.264
Resolution 8Mp/ 6Mp/ 5MP4MP/ 3MP/ 1080P/ 1.3MP/ 720P etc.
Record Rate 200Mbps
Bit Rate 16Kbps ~ 20Mbps Per Channel
Record Mode Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Tampering, Video Loss), Stop
Record Interval 1 ~ 120 min (default: 60 min), Pre-record:

1 ~ 30 sec, Post-record: 10 ~ 300 sec

Video Detection and Alarm

Trigger Events Recording, PTZ, Tour, Video Push, Email, Snapshot, Buzzer and Screen Tips
Video Detection Motion Detection, MD Zones: 396 (22 × 18),

Video Loss and Tampering

Alarm input 4 Channel
Alarm output

2 Channel

Playback and Backup

Playback 1/4/9/16
Search Mode Time /Date, MD and Exact Search

(accurate to second), Smart search

Playback Function Play, Pause, Stop, Rewind, Fast play, Slow Play,

Next File, Previous File, Next Camera, Previous Camera, Full Screen, Backup Selection, Digital Zoom

Backup Mode USB Device/Network





Third-party Support

Third-party Support Arecont Vision, Airlive, AXIS, Canon, Dynacolor, JVC, LG, Panasonic, Pelco, PSIA, Samsung, Sanyo, Sony, Watchnet and more

Network

Interface 1 RJ-45 Port (10/100/1000Mbps)
Ethernet Port 1 Independent 1000Mbps Ethernet Port
PoE 16 ports (IEEE802.3at/af)
Network Function HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter,  DDNS, FTP, SNMP, IP Search (Support IP camera, DVR, NVS, etc.)
Max. User Access 128 users
Smart Phone iPhone, iPad, Android
Interoperability ONVIF 2.4, SDK, CGI

Storage

Internal HDD 2 SATA III Ports, Up to 6 TB capacity for each HDD
HDD Mode Single

Auxiliary Interface

USB 2 ports(1 USB2.0, 1 USB3.0)
RS232 1 Channel
RS485 N/A

Electrical

Power Supply AC100V ~ 240V, 50 ~ 60 Hz
Power Consumption NVR: < 13.2W(without HDD)
PoE: Max 25.5w for single port, 130w in total

Environmental

Operating Conditions -10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa
Storage Conditions -20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH

Construction

Dimensions 1U, 375mm×327.5mm×53mm

(14.8″ x 12.9″ x2.1″)

Net Weight 2.6kg (5.7 lb) (without HDD)
Gross Weight 4kg(8.8 lb)(without HDD)
Certifications
CE EN55032, EN55024, EN50130-4, EN60950-1
FCC Part 15 Subpart B, ANSI C63.4-2014
UL UL60950-1

Alternatively, you can check out the Dahua 4 channel DVR or the 8 channel DVR

You can access the data sheet for this device here
