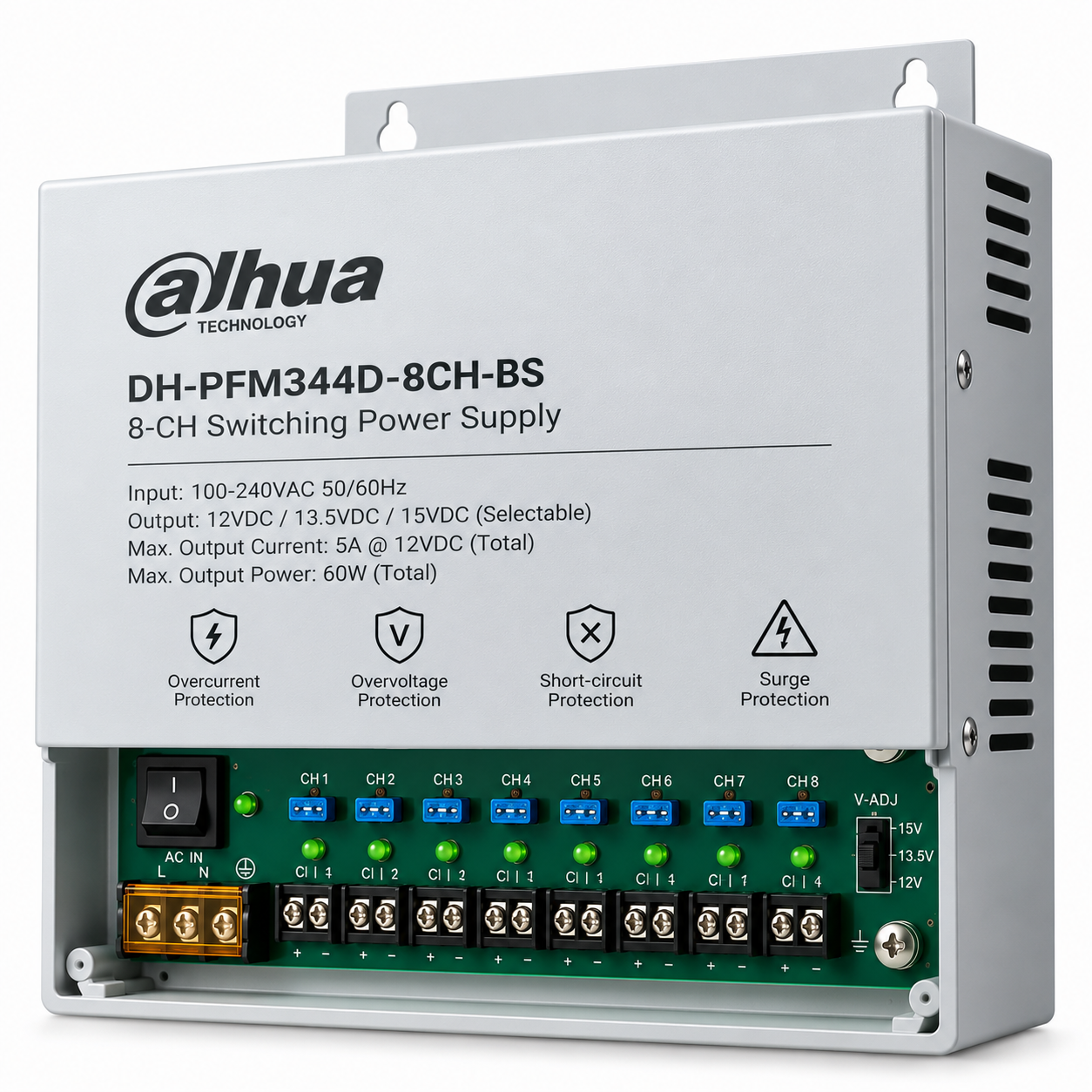

The DH-PFM344D-8CH-BS provides a convenient and organized power solution for CCTV and security systems requiring multiple DC outputs. With eight independent output channels, it can supply power to several compatible surveillance devices from a single power supply, helping simplify installation and cable management.
The unit accepts 100–240VAC input and provides three selectable output voltage levels: 12VDC for normal operation, 13.5VDC for longer cable runs, and 15VDC for extra-long cable runs. It delivers up to 12W per channel, with a 60W total rated output power.
For reliable operation, the power supply includes overcurrent, overvoltage, and short-circuit protection, as well as surge protection rated at ±4kV common mode and ±2kV differential mode. Its compact gray enclosure supports wall-mount installation and uses a V-0 flame-retardant construction.
Key Features
- 8 independent output channels
- 100–240VAC input
- Selectable output: 12VDC / 13.5VDC / 15VDC
- Up to 12W output per channel
- 60W total output power
- Rated output current:
- 12V: 5A
- 13.5V: 4.5A
- 15V: 4A
- Overcurrent protection
- Overvoltage protection
- Short-circuit protection
- Surge protection: ±4kV common mode / ±2kV differential mode
- Static protection: ±8kV air / ±6kV contact
- V-0 flame-retardant construction
- ≥88% efficiency
- Wall-mount installation
- Compact gray metal housing
- Dimensions: 140.1 × 94.5 × 34.2 mm
- Net weight: approximately 0.27 kg
- CE certified
