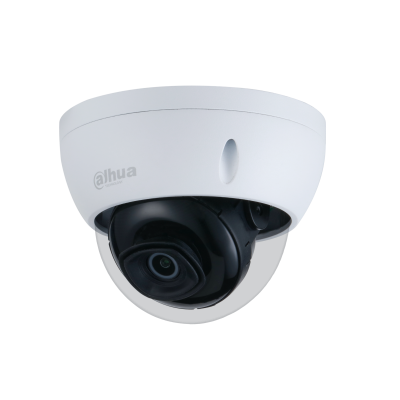

DH-IPC-HDBW2231EP-S-S2 Dahua 2MP IR Mini Dome Network Camera


With updraded H.265 encoding technology, Dahua Lite series camera has efficient video encoding capacity, which saves bandwidth and storage space. This camera adopts the latest starlight technology and displays better colorful image in the environment of low illumination. It supports SD card storage, waterproof function, dust-proof function and tamper-proof function, complying to the standards of IP67 and IK10. With advanced video algorithm, Dahua camera supports intelligent detection, such as tripwire and intrusion and so on.

Smart (H.265+ & H.264+)
Adopting advanced algorithm of auto stream control according to the environment, Dahua smart encoding technology realizes the higher efficiency than (H.265 & H.264 ), providing high-quality video, and reducing the cost of storage and transmission.

Image Sensor : 1/2.8” 2Megapixel progressive CMOS
Effective Pixels :1920 (H) ×1080 (V)
ROM:128 MB
RAM: 128 MB
Scanning System: Progressive
Electronic Shutter Speed: Auto/Manual 1/3 s–1/100000 s
Min. Illumination: 0.002 Lux @F1.6
IR: Distance: 30 m (98.4 ft)
IR On/Off Control Auto/Manual
IR LEDs Number 3

Lens Features
Lens Type :Fixed-focal
Mount Type: M12
Focal Length: 2.8 mm, 3.6 mm
Max. Aperture: F1.6




Product Description

DH-IPC-HDBW2231EP-S-S2 Dahua 2MP IR Mini Dome Network Camera

  • 2MP, 1/2.8” CMOS image sensor, low illuminance, high image definition
  • Outputs 2MP (1920 × 1080) @ 25/30 fps
  • H.265 codec, high compression rate, ultra-low bit rate
  • Built-in IR LED, max IR distance: 30 m
  • ROI, SMART H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
  • Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
  • Intelligent detection: Intrusion, tripwire · Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnected, IP conflict, illegal access, voltage detection
  • Supports max. 256 GB Micro SD card
  • 12V DC/PoE power support
  • IP67, IK10 protection grade
