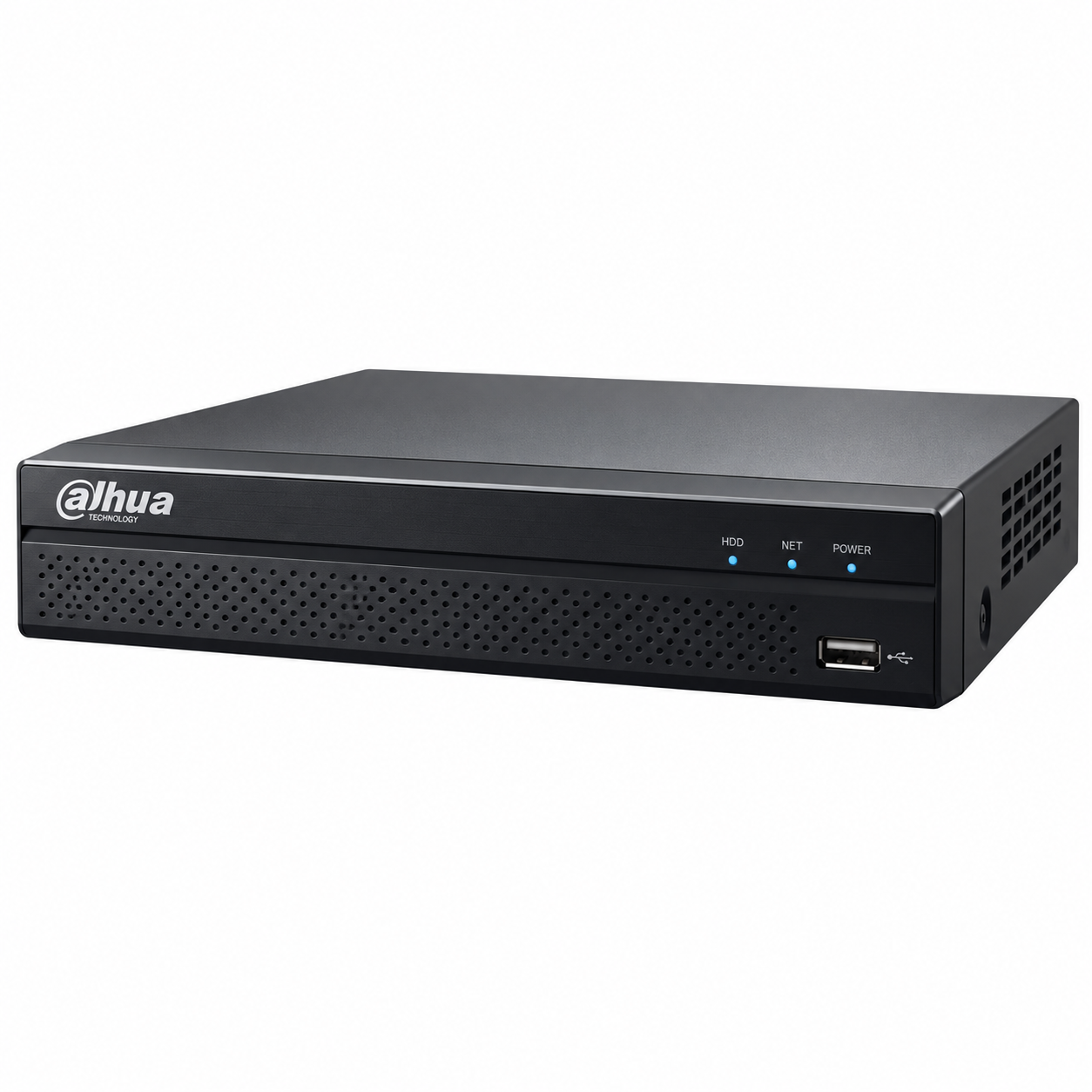

The Dahua DH-XVR1B04-I/T is a compact 4-channel Penta-brid digital video recorder from Dahua’s Cooper-I/T WizSense series. It supports four BNC camera inputs with HDCVI, AHD, TVI, and CVBS technologies, while also supporting up to 5 IP camera channels at up to 2MP per channel.
For audio-enabled surveillance, the recorder supports two-way talk over coaxial cable, allowing communication between compatible cameras, the recorder, and connected client devices. It also provides RCA audio input and output for conventional audio connections.
The XVR features SMD Plus, which helps distinguish humans and vehicles from other motion triggers, reducing unwanted motion alarms. It also supports AI Coding, Smart H.265+, H.265, Smart H.264+, and H.264 compression technologies to optimize video storage and bandwidth usage.
For storage, the DH-XVR1B04-I/T provides one SATA interface supporting up to 6TB, while HDMI and VGA outputs support displays up to 1080p. It also includes an RJ-45 network port and two USB 2.0 ports.
Key Features
- 4-channel HDCVI/AHD/TVI/CVBS video input
- Supports up to 5 IP cameras
- Up to 2MP per IP camera
- Two-way audio over coaxial cable
- SMD Plus human and vehicle detection
- AI Coding and Smart H.265+ compression
- HDMI and VGA video outputs
- 1 SATA HDD interface, up to 6TB
- 1 × RJ-45 network port
- 2 × USB 2.0 ports
- Compact 1U design
- 12V DC power supply
